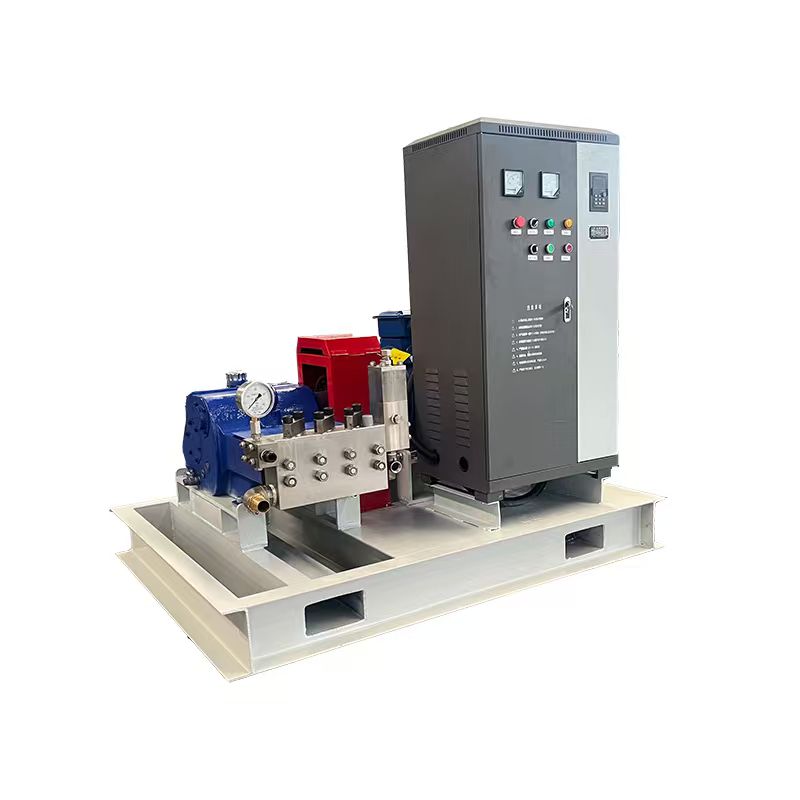

RTD-3D2 Unit High-Pressure Pump Water Blasting Machine for Cleaning

Low-Noise Plunger High-Pressure Pump Unit for Blasting

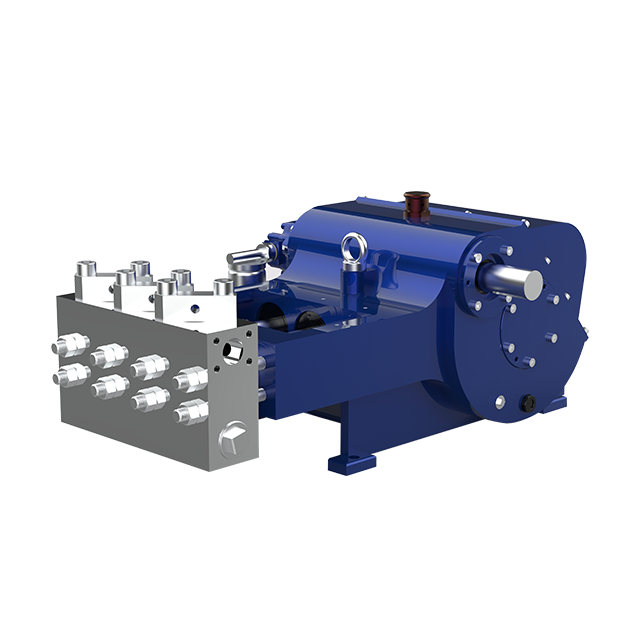

RTD3D2 High-Pressure Pump features high pump efficiency, stable operation, low wear, compact structure, high flow capacity, easy replacement of wear-prone components, and time-saving maintenance. It is equipped with a pressure regulating valve and relief valve:
The pressure regulating valve adjusts working pressure to meet operational demands.
The relief valve ensures safety by providing overpressure relief functionality.
The RTD-3D2 is compatible with multiple drive configurations, facilitating flexible integration into various operations such as municipal, industrial and mining sectors.

Model:
RTD-3D2

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Advantage

3D Jet Precision: Rotational nozzles deliver uniform pressure distribution, reducing cleaning time by 35% compared to fixed-nozzle systems .

Smart Monitoring: Built-in IoT module tracks operating parameters (pressure, temperature, flow) and sends maintenance alerts via mobile app .

Corrosion Resistance: Duplex stainless steel (UNS S31803) construction resists chemical corrosion, suitable for use with pH 2-12 cleaning solutions .

RTD-3D2

Technical Parameters

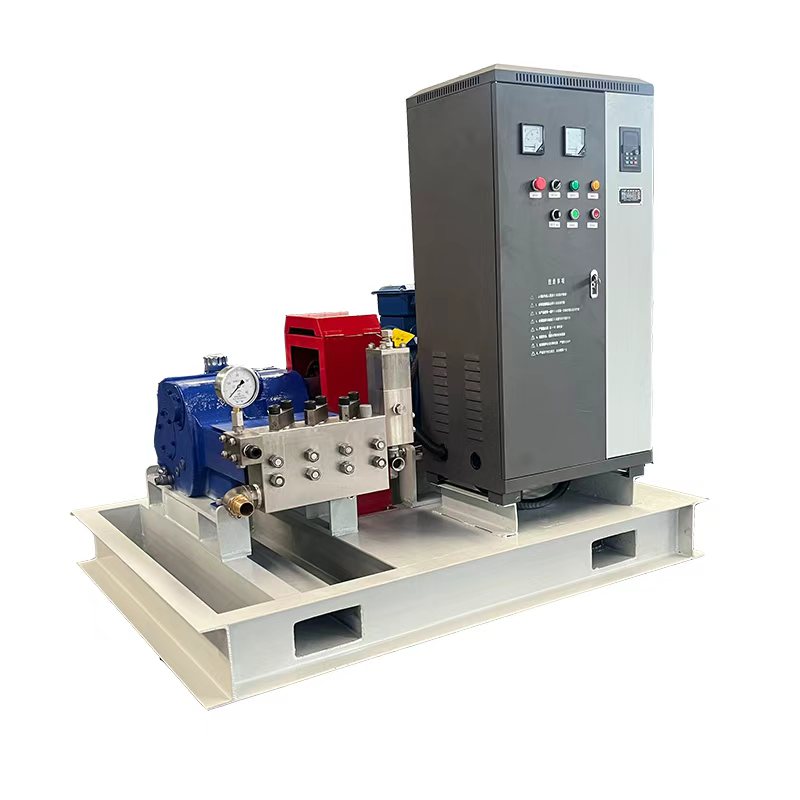

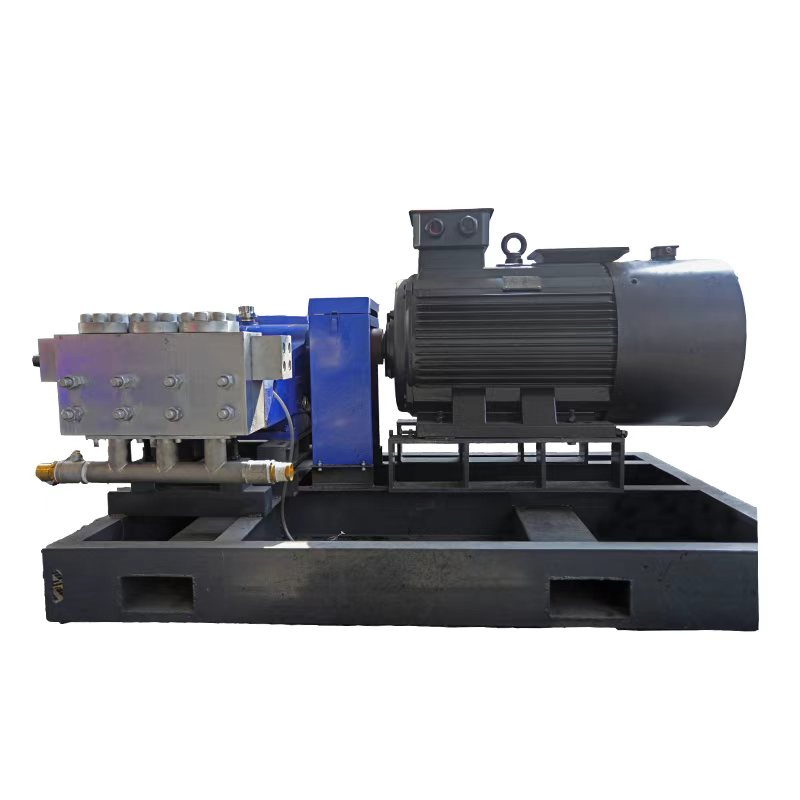

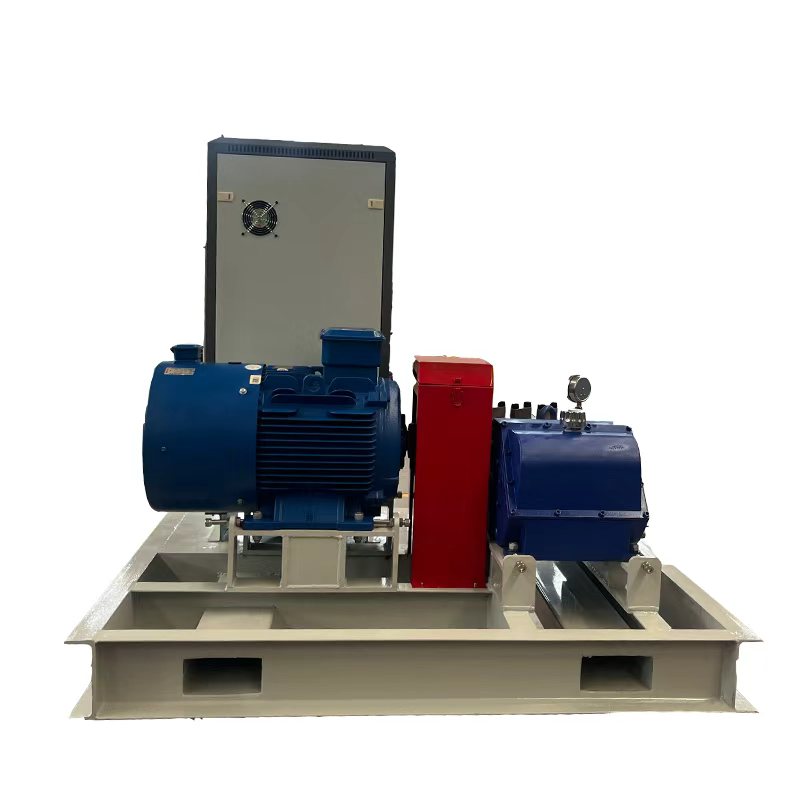

Motor-driven high-pressure cleaning unit(Power 90kw)
Pressure	Mpa	140		130		110		92		78
Flow Rate	L/min	29		36		44		52		61
Plunger Diameter	mm	18		20		22		24		26

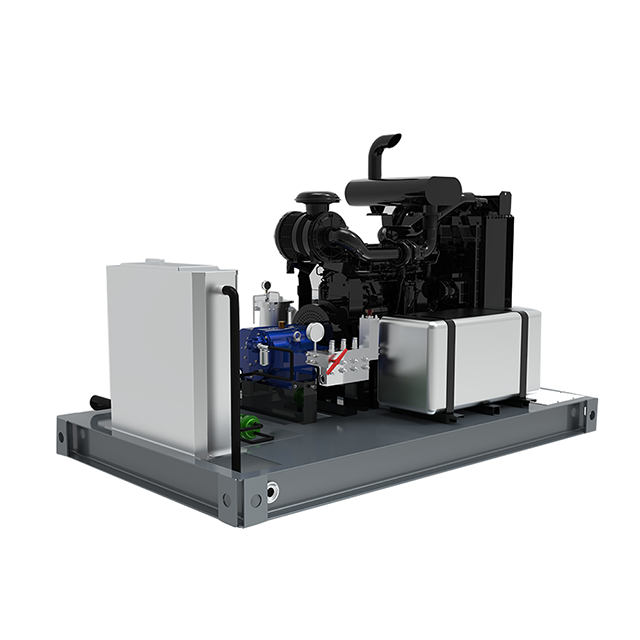

Diesel-driven high-pressure cleaning unit(Power 120kw)
Pressure	Mpa	140	130		110		92		84	77
Flow Rate	L/min	29	36		44		52		57	61
Plunger Diameter	mm	18	20		22		24		25	28

Product Uses

The RTD-3D2 Unit High-Pressure Pump Water Blasting Machine stands out with its 3D rotational jet technology, designed for complex surface cleaning in industrial settings. This triplex pump integrates a titanium alloy fluid end and balanced crankshaft to minimize vibration during operation. Key performance metrics include a maximum pressure of 4,350 psi (300 bar) , a flow rate of 52 gpm (197 L/min) , and a rotational jet angle range of 0-360° . The machine is equipped with diamond-coated nozzles and a digital pressure gauge with real-time data logging (up to 10,000 data points) .

Aerospace Component Cleaning: Removes hydraulic fluid residues from turbine blades and carbon deposits from engine parts .

Chemical Tank Restoration: Cleans internal surfaces of storage tanks containing acids, solvents, and viscous fluids .

Heritage Building Preservation: Gently strips paint from historic stonework without surface damage, using adjustable low-pressure modes (500-1,000 psi) .

FAQ

Q: What is the weight of the RTD-3D2 Unit for transportation?

A: The base model weighs 450 kg , with optional lifting lugs and fork truck pockets for easy on-site movement .

Q: Does it come with different nozzle sizes?

A: Yes, it includes 4 interchangeable nozzles (1.5mm, 2.0mm, 2.5mm, 3.0mm) for flow rates ranging from 25 to 52 gpm .

Q: What is the warranty coverage?

A: The pump core has a 2-year warranty , while wear parts (nozzles, packing) are covered for 6 months .
