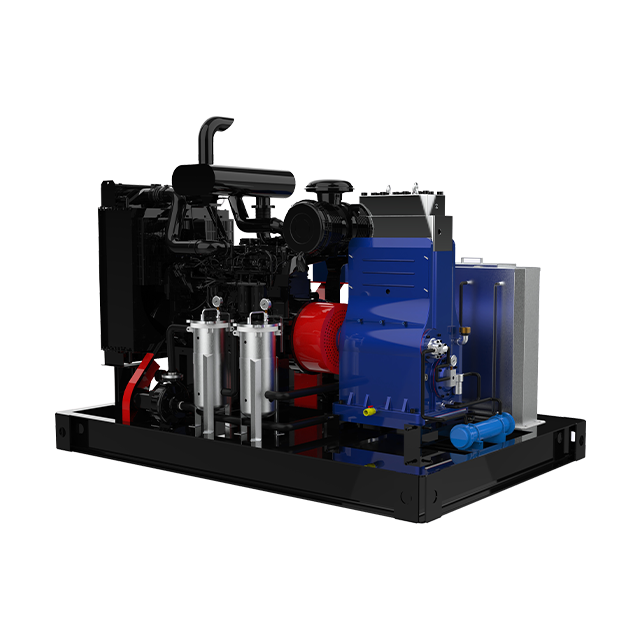

Equipment failures drain operational profitability rapidly. Unplanned downtime disrupts entire production schedules across your facility. Maintenance costs spiral when critical fluid systems stop unexpectedly. Plant managers face intense pressure to maintain high mechanical reliability. We recognize vertical architectures save valuable floor space on crowded plant floors. They also excel under strict Net Positive Suction Head (NPSH) conditions. However, their physical geometry inherently introduces unique mechanical stresses. You need a solid framework to pinpoint these specific root causes accurately. We will explore how to evaluate diagnostic data effectively. You will learn to make evidence-based repair-versus-replace decisions for your Vertical Plunger Pump. This guide breaks down common symptoms, underlying mechanical causes, and modern diagnostic protocols. You can finally stop treating superficial symptoms and start eliminating the underlying failures.
Vibration and Dynamic Excitation are the leading causes of structural degradation in vertical pump configurations due to suspension and overhang effects.
Packing and Seal Failures in a vertical plunger pump rarely happen in isolation; they are typically symptoms of misalignment or underlying fluid dynamics issues (like cavitation).
Accurate Diagnosis Requires Data: Effective troubleshooting moves beyond visual inspection, utilizing vibration analysis and thermal monitoring to pinpoint root causes.
TCO Defines the Fix: Decision-makers should evaluate Mean Time Between Failures (MTBF) and overall lifecycle costs rather than defaulting to sequential band-aid repairs.
Vertical orientations create a unique physical challenge known as the pendulum effect. The motor sits high above the mounting plate. This elevated center of gravity makes the entire unit act like an inverted pendulum. It becomes highly susceptible to dynamic excitations. Slight imbalances magnify exponentially at the top of the motor structure. Vertical architectures suffer from system resonance far more often than horizontal counterparts. Natural frequencies can easily align with operating speeds. This alignment causes destructive amplification. Engineers must carefully evaluate structural stiffness during the initial design phase.
Gravity constantly pulls downward on the rotating assembly. Axial thrust forces concentrate directly on the motor and top bearings. These forces require massive structural support to prevent catastrophic failure. Engineers must design robust thrust management systems. They utilize specialized angular contact bearings to handle these intense vertical loads. Premature wear occurs rapidly if you fail to maintain precise bearing clearances. Lubrication becomes critical because oil must fight gravity to reach upper bearing housings. A momentary loss of lubrication destroys thrust bearings in minutes.
Standard centrifugal pumps deliver relatively smooth, continuous fluid flow. Conversely, reciprocating units introduce intense pulsation into the piping network. A Vertical Plunger Pump faces highly aggressive fluid dynamics during each stroke. Pulsation dampeners absorb these violent pressure spikes. Failed pulsation dampeners severely exacerbate vertical structural vulnerabilities. Improperly sized dampeners amplify shockwaves through the entire vertical column. You must ensure dampener bladders maintain correct nitrogen pre-charge levels. Neglecting this maintenance rapidly destroys internal valves and connecting rods.
Identifying failures early prevents expensive catastrophic breakdowns. You must learn to link visible symptoms to their mechanical root causes. Here are the five most frequent issues encountered in the field.
Problem 1: Excessive Vibration and System Resonance
Symptom: High decibel noise levels dominate the area. You observe visible shaking near the motor housing. Mounting hardware wears out or loosens rapidly.
Root Cause: Mechanical imbalance often starts the process. Bent shafts create eccentric rotation. Sometimes, the pump’s natural frequency perfectly aligns with the operating speed. This creates severe structural resonance.
Problem 2: Premature Packing and Seal Failure
Symptom: Process fluid pools continuously at the baseplate. Maintenance teams frequently perform manual gland adjustments. System pressure drops unexpectedly during operation.
Root Cause: Plunger misalignment forces uneven wear against the packing material. Abrasive particulates in the fluid tear the seal lips. Improper installation tensions crush the packing prematurely.
Problem 3: Cavitation and Fluid-End Pitting
Symptom: The equipment sounds like marbles rattling inside the casing. Teardowns reveal deeply pitted plungers. Flow rates become highly erratic and unpredictable.
Root Cause: The system suffers from inadequate Net Positive Suction Head available (NPSHa). Restricted suction lines choke the fluid supply. Vapor pockets form and violently collapse within the vertical column.
Problem 4: Thrust Bearing Overload
Symptom: The bearing housing overheats dangerously. Motor amperage spikes without any process changes. Oil analysis reveals shiny metal shavings in the lubricant.
Root Cause: Technicians set improper clearance settings during installation. The housing loses active lubrication. The unit operates continuously outside its Best Efficiency Point (BEP).
Problem 5: Flow Rate Degradation (Loss of Volumetric Efficiency)
Symptom: The system fails to meet basic pressure requirements. Batch processes suffer from prolonged cycle times. Operators notice a distinct drop in overall output.
Root Cause: Internal discharge or suction valves wear down. Deeply scored plungers allow fluid bypass. Internal leaks compromise the entire fluid end efficiency.
You must avoid making assumptions about equipment failures. Establish a firm mechanical baseline first. Vibration spectrum analysis remains absolutely essential for vertical architectures. This data differentiates a mechanical imbalance from a complex hydraulic anomaly. Technicians place sensors at the motor top, coupling, and fluid end. They look for specific frequency peaks. A peak at one times the running speed (1X) indicates unbalance. Peaks at higher multiples suggest valve issues or severe looseness. Consistent data collection provides a clear historical trend.
Modern diagnostics rely heavily on non-destructive testing tools. Thermal imaging exposes hidden friction inside bearing housings immediately. You can spot a failing thrust bearing before it seizes. Ultrasonic leak detection verifies internal valve integrity instantly. High-frequency acoustic tools listen for fluid bypassing closed valves. These techniques let you catch small issues early. You avoid complete system teardowns for minor troubleshooting. Routine NDT inspections drastically increase your overall equipment reliability.
Sometimes digital data points to a severe internal failure. You must then perform a physical inspection. Define strict criteria for your teardown reviews. Check coupling alignment tolerances using precision dial indicators. Measure plunger scoring depth accurately using calibrated micrometers. Verify baseplate rigidity to ensure foundational stability. Document every finding meticulously. Compare these physical measurements against original OEM specifications. This process confirms whether you need simple repairs or major component replacements.
Aging equipment eventually demands a strategic review. You must evaluate the Mean Time Between Failures (MTBF). Compare ongoing repair expenses against modern replacement prices. Calculate the financial impact of lost production during unexpected downtime. Frequent packing replacements indicate deeper structural flaws. Continuous maintenance of an aging Vertical Plunger Pump drains maintenance budgets. An annualized lifecycle value analysis often reveals replacing the unit costs less than endlessly fixing it.
Modern engineering offers significant technological leaps. Material upgrades actively mitigate aggressive abrasive wear. Upgrading to solid ceramic or tungsten carbide plungers extends operational lifespan significantly. Design upgrades reduce heavy manual labor. Transitioning to enhanced stuffing box designs prevents constant gland tightening. Auto-aligning couplings save countless manual maintenance hours. You must map these modern features directly to your desired reliability outcomes.
Failure Symptom | Standard Repair Strategy | Modern Upgrade Strategy |
|---|---|---|
Frequent Packing Leaks | Repack gland manually every month | Upgrade to spring-loaded V-ring packing sets |
Rapid Plunger Scoring | Replace standard steel plungers | Install tungsten carbide or ceramic coated plungers |
Valve Pitting (Cavitation) | Replace valves and monitor suction | Install active pulsation dampeners and redesign suction pipe |
Thrust Bearing Failure | Replace bearings and check grease | Upgrade to auto-lubricated angular contact bearing housings |
Equipment failures extend beyond mere financial losses. Severe fluid leaks threaten your environmental compliance status. Toxic or flammable fluid releases trigger heavy regulatory fines. Catastrophic bearing failures endanger worker safety on the plant floor. These high-risk events trigger mandatory replacement criteria. You cannot compromise on environmental health and safety. Upgrading to hermetically sealed or leak-mitigated designs protects your workforce and your corporate reputation.
Structure a detailed vendor Request for Information (RFI). Do not accept generic sales brochures. Focus exclusively on OEMs who provide custom hydraulic modeling. Demand verified performance curves tailored for your specific application. Ask vendors to explain their thrust management engineering. Request case studies showing successful vertical installations in similar industries. A rigorous RFI process ensures you select a genuinely robust replacement.
A new machine fails quickly on a weak foundation. The mounting surface requires massive structural mass. It must absorb extreme dynamic forces effortlessly. Industry standards dictate the concrete foundation should weigh three to five times the equipment mass. Ensure the baseplate is properly grouted using epoxy materials. Voids under the baseplate create hollow resonance chambers. They amplify normal vibrations into destructive shaking. Always perform a soft-foot check before final bolt tightening.
Piping layout directly impacts mechanical longevity. Detail the importance of independent pipe supports. Suction and discharge flanges cannot carry heavy piping weight. Piping strain misaligns the internal components severely. It distorts the casing and forces plungers off-center. Engineers must verify pipe strain during installation. Unbolt the flanges after aligning the pipes. If the pipes spring away, you have unacceptable strain. Fix the pipe supports before operating the system.
Visual alignment is never acceptable for vertical architectures. Precision laser alignment remains absolutely mandatory. You must verify alignment cold during initial setup. However, the job does not stop there. Check the alignment again at full operating temperature. Thermal growth shifts metal components significantly. A perfectly aligned cold machine often misaligns when hot. Follow the OEM commissioning checklist strictly. Never rush the final commissioning phase to meet production deadlines.
We must shift from reactive troubleshooting to proactive structural evaluation. Band-aid repairs only mask deeper mechanical flaws. Resolving vertical problems permanently requires absolute structural rigidity. You must ensure proper NPSH margins to prevent destructive cavitation. Precise laser alignment eliminates premature bearing and seal wear. Stop letting unexpected downtime control your maintenance schedule. Schedule a comprehensive fluid-end audit today. Consult with specialized application engineers to size your next replacement correctly. Evidence-based diagnostics will secure your operational profitability for years.
A: Vertical designs suffer from a cantilever effect. The motor sits high above the base, acting like an inverted pendulum. Small imbalances at the bottom magnify into large vibrations at the top. They also hit natural resonance frequencies more easily than horizontal units.
A: Replacement intervals depend entirely on operating conditions. Highly abrasive fluids might require monthly replacements. Clean fluids allow packing to last over a year. Focus on preventative monitoring rather than generic timelines. Do not run the packing until it completely fails.
A: Yes, you can often resolve cavitation externally. You must increase the available suction pressure. Redesigning suction piping to remove restrictions helps immensely. Installing properly sized pulsation dampeners smooths fluid flow. You rarely need to replace the entire unit for cavitation issues.
A: Acceptable tolerances vary by operating speed and coupling type. Generally, laser alignment should achieve less than 0.002 inches of offset. However, OEM specifications always supersede general industry guidelines. Always account for thermal growth when setting your final alignment tolerances.
