Views: 0 Author: Site Editor Publish Time: 2026-07-09 Origin: Site
Selecting the right pump orientation presents a critical infrastructure challenge. This decision directly impacts your facility footprint, maintenance downtime, and long-term capital expenditure. Plant engineers frequently face strict spatial constraints when designing modern process systems. Moving past basic definitions becomes essential. You must evaluate the mechanical realities and rotor dynamics of horizontal versus vertical configurations. This thorough evaluation ensures optimal system performance and reliability.
We will explore how these specific orientations affect everything from piping design to bearing life. High-pressure, space-constrained applications often dictate specialized engineering solutions. You will learn why certain demanding environments rely on specific architectures to succeed. By understanding these structural differences, you can engineer better fluid handling systems. You will reduce unnecessary mechanical wear and streamline routine maintenance operations. Understanding these nuances helps operators prevent catastrophic failures and optimize daily output. Let us dive into the core engineering differences driving modern pump selection today.
Spatial vs. Accessibility Trade-off: Vertical pumps reduce floor footprint by up to 75% but often require overhead clearance and longer maintenance windows compared to horizontal models.
NPSH and Cavitation: Vertical configurations (specifically turbine and barrel types) offer inherent advantages in Net Positive Suction Head (NPSH) availability, making them superior for low-level fluid extraction.
Rotor Dynamics: Horizontal pumps generally offer better stability and easier alignment, whereas vertical pumps require strict management of radial loads and vibration.
High-Pressure Superiority: For applications requiring precise, high-pressure fluid handling in tight spaces, specifying a vertical plunger pump resolves both spatial and performance bottlenecks.
Horizontal setups require extensive floor space. You need adequate room for the pump, motor, and coupling. They demand rigid, heavy baseplates. This prevents structural flexing during operation. Industry standards often recommend foundations weighing three to five times the equipment mass. You must pour substantial concrete pads. This mass absorbs vibration and anchors the system securely to the ground.
Vertical units capitalize on vertical air space beautifully. They require a much smaller, highly concentrated foundation footprint. You save premium floor real estate. This makes them ideal for offshore platforms and crowded mechanical rooms. However, they demand adequate overhead crane clearance. You need this vertical space for safe motor removal. A common mistake is forgetting to measure the maximum hook height of the facility crane before finalizing the layout.
Piping geometry significantly impacts your facility layout choices. Horizontal setups offer straightforward routing. You can use inline or side-by-side piping configurations. This simplifies above-ground connections dramatically. Operators can visually inspect flanges easily. Pipe supports are simple to design and install across flat planes.
Vertical setups often streamline suction from below-grade sumps or tanks. They pull fluid vertically, minimizing complex suction piping. This direct approach reduces friction losses on the suction side. You eliminate multiple elbows and valves. However, discharge piping must be routed carefully. You must avoid placing excessive mechanical strain on the pump casing, which can cause internal rubbing.
Shaft alignment presents distinct mechanical realities. Horizontal units face severe thermal growth challenges. They require careful expansion allowances. Heat causes metals to expand, shifting the shaft centerline. You must perform hot alignment checks to ensure accuracy. If you ignore thermal growth, you will destroy bearings rapidly.
Vertical units rely on rigid flanged motor mounts. These mounts inherently maintain alignment through machined fits. However, they are highly sensitive to flange tolerances. A slight machining error causes significant runout down the shaft. You must ensure perfect perpendicularity during installation. Dirt trapped between mating flanges will ruin the alignment instantly. Proper cleaning during assembly is non-negotiable.
Vertical pumps can lower the first-stage impeller or plunger directly into the fluid source. This artificially boosts the Net Positive Suction Head available (NPSHa). It effectively prevents destructive cavitation. You can reach fluids deep within a sump without relying on external priming systems. This inherent design advantage solves low-level fluid extraction problems seamlessly. Cavitation physically pits and destroys metal components, so preventing it is critical.
Horizontal pumps remain highly effective under different conditions. They excel when suction vessels are elevated. They also perform perfectly when fluid is fed under positive pressure from a booster pump. You just need sufficient suction head to keep them operating smoothly. A common mistake is placing horizontal pumps too far from the suction source, leading to frictional head loss and unexpected cavitation.
Bearing-rotor dynamics dictate operational lifespan. Horizontal shafts endure radial loads from gravity pulling down on the rotor. They also handle hydraulic thrust from the fluid. This combination often results in predictable bearing wear. You can easily monitor it using standard vibration analysis tools. Maintenance teams can predict failures before they occur and schedule repairs accordingly.
Vertical shafts carry a distinct implementation risk. They operate much like a pendulum hanging from a pivot. This makes them susceptible to unbalanced hydraulic forces. They require specialized thrust bearings. These bearings must handle the entire axial load of the rotor and the upward thrust of the fluid. Proper structural support is absolutely mandatory. If the foundation lacks stiffness, the entire assembly will vibrate excessively, leading to rapid seal failure.
The maintenance experience contrasts sharply between equipment types. Horizontal pumps typically allow "back-pull-out" designs. You can remove the rotating element easily. You do this without disturbing the suction or discharge piping. You also leave the motor bolted in place. This minimizes production downtime significantly. A single mechanic can often complete a seal change in just a few hours.
Vertical pumps carry hidden maintenance burdens. Servicing the fluid end or mechanical seals is generally harder. You often must disconnect the motor entirely. This requires utilizing heavy lifting equipment and dedicated rigging teams. Your maintenance windows will inevitably stretch longer. Replacing a mechanical seal on a large vertical unit can take a full day and require multiple technicians.
Compare the upfront civil engineering costs carefully. Horizontal pump stations often require larger buildings. They demand spacious enclosures to protect the widespread equipment. This leads to higher real estate and structural construction costs. You pay more for concrete, steel, and roofing materials to cover the footprint.
Vertical pumps minimize structural width. You save money on building size and land acquisition. However, they may require deeper sumps. They also need taller ceilings for crane access. Excavation costs can sometimes offset the savings in building footprint. Digging deep sumps in rocky or water-logged soil presents significant engineering challenges and hidden expenses.
Both orientations exist in centrifugal formats. However, centrifugal pumps lose efficiency rapidly under specific conditions. They struggle in high-pressure, low-flow applications. Fluid slips back over the impeller blades when pressure rises too high. The pump consumes excess energy without delivering the required pressure. This slip generates excessive heat, which can vaporize the fluid and damage internal components.
Plunger mechanics represent the engineering standard for high-pressure tasks. They dominate chemical injection, precision metering, and hydrostatic testing. They deliver exact fluid volumes regardless of system pressure fluctuations. This makes them highly predictable and efficient.
Combining a vertical orientation with positive displacement solves complex constraints. You get massive pressure capabilities in a tiny footprint. This hybrid approach overcomes both spatial and operational limitations effectively. It represents a pinnacle of targeted mechanical engineering for demanding industrial environments.
Sometimes a facility requires pressures exceeding 1,500 PSI. Yet, it lacks the floor space for massive equipment. A large multi-stage horizontal centrifugal pump will not fit. A standard horizontal triplex pump takes up too much room. This specific use case requires a highly specialized approach to fluid dynamics.

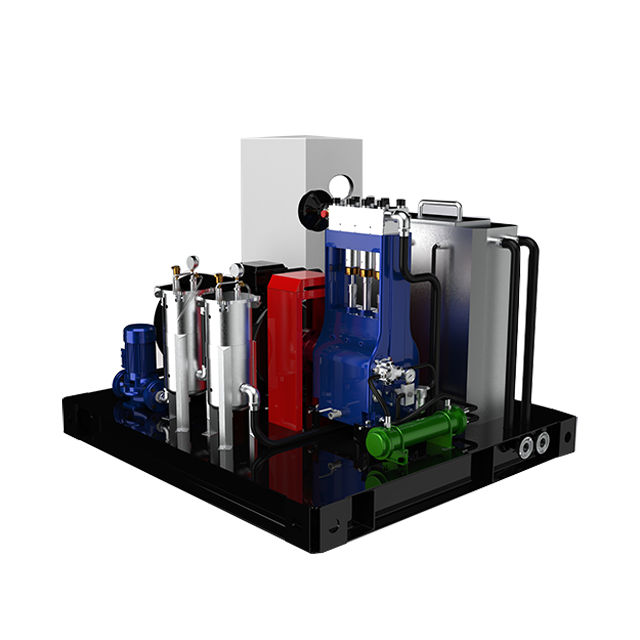

Specifying a Vertical Plunger Pump becomes the optimal solution. It delivers the necessary pressure vertically. You maximize your pressure output while minimizing your physical footprint. This configuration keeps critical processes running in extremely constrained environments.
This design offers excellent gravity-assisted packing lubrication. It drastically reduces eccentric wear on the internal components. In horizontal models, gravity pulls the plunger against the bottom of the stuffing box. This causes uneven wear over time, leading to premature packing failure. Vertical designs keep the plunger perfectly centered, extending component life.
The minimal footprint is perfect for tight spaces. It suits skid-mounted offshore applications perfectly. Chemical injection packages and crowded industrial utility rooms benefit immensely from this compact design. Offshore platforms charge a premium for every square foot of deck space. Going vertical saves enormous amounts of money in spatial design.
You must address certain operational realities transparently. Smooth operation requires robust pulsation dampeners. You must employ strict inlet piping design. Proper suction stabilization prevents hydraulic shock. These steps ensure the reliable operation of the Vertical Plunger Pump. Do not ignore suction acoustics. A poorly designed suction line will cause the unit to hammer and vibrate aggressively, risking pipe rupture.
To simplify your selection process, review the comparative baseline below before moving through the engineering steps.
Application Requirement | Horizontal Configuration | Vertical Configuration |
|---|---|---|
Footprint Availability | Requires broad floor space | Requires minimal floor, high clearance |
NPSH Available (NPSHa) | Requires sufficient positive suction | Excellent for low-level extraction |
Maintenance Access | Easy back-pull-out access | Requires overhead crane for motor removal |
Thermal Expansion | Requires strict alignment checks | Handled naturally by flanged mounts |
Step 1: Audit Site Constraints: Calculate available floor space versus vertical clearance. Identify the structural load-bearing capacity of the floor or sump. Ensure your facility can handle the concentrated point loads of a vertical installation. Look for overhead obstructions like piping racks or HVAC ducts.
Step 2: Map Hydraulic Requirements: Define exact Flow, Total Dynamic Head (TDH), and NPSHa. A simple rule of thumb applies here. Low NPSHa leans toward vertical configurations. High flow with low pressure leans toward horizontal centrifugal models. High pressure with low flow dictates positive displacement technology.
Step 3: Evaluate Long-Term Maintenance Operations: Weigh the upfront civil engineering savings of a vertical layout against operational realities. Consider the potentially higher hourly labor costs for maintenance. Ensure you have the right lifting equipment permanently installed to avoid rental delays during emergencies.
Step 4: Establish Compliance & Safety Standards: Ensure the chosen orientation meets API, ANSI, or specific regional environmental standards. You must account for leak detection and hazardous fluid containment. Industry standards dictate strict rules for pump casing designs, allowable nozzle loads, and emission controls.
The choice between horizontal and vertical configurations is never purely preferential. It is heavily dictated by fluid dynamics, spatial realities, and your available maintenance bandwidth. You must balance upfront civil engineering requirements with long-term accessibility. Ignoring these variables leads to premature equipment failure and frustrating operational bottlenecks.
Horizontal pumps remain the standard for accessible, high-flow applications where floor space is abundant. However, vertical configurations stand out when footprint restrictions apply. Specifically, the Vertical Plunger Pump is the definitive choice for maximizing high-pressure capabilities within severely restricted footprints. It merges the reliability of positive displacement with exceptional space efficiency.
We encourage plant engineers to request a comprehensive site footprint audit. You should submit your exact hydraulic data and spatial constraints to equipment specialists. A customized pump selection consultation ensures your next installation maximizes uptime and integrates flawlessly into your existing infrastructure.
A: Focus on civil versus equipment costs. The pump itself may cost a similar amount. However, vertical setups save significantly on building and floor space. Conversely, they can potentially increase sump excavation costs. You must weigh the price of pouring broad concrete pads against digging deeper structural sumps.
A: Yes, they can if they are not properly supported. You must address rotor dynamics carefully. Vertical units lack the rigid, full-length baseplate of a horizontal pump. They operate like a pendulum. This makes foundation stiffness absolutely critical to dampening vibration and preventing premature bearing failure.
A: We must clarify the core mechanisms. A turbine uses centrifugal force. It spins impellers to deliver high flow at low to medium pressures. A plunger uses positive displacement. It relies on a reciprocating action to deliver precise, ultra-high pressure. Plungers excel where centrifugal turbines lose efficiency.
A: Horizontal centerline-mounted pumps are traditionally preferred for high heat. They manage thermal expansion efficiently. This design allows for uniform thermal growth without disrupting shaft alignment. While engineered vertical solutions do exist for hot fluids, horizontal configurations present fewer mechanical complications during extreme temperature fluctuations.
