Industrial facilities face immense pressure to maximize output within highly confined spaces. Engineering teams constantly struggle to balance strict spatial limits against rigorous hydraulic demands. Limited floor space frequently collides with challenging Net Positive Suction Head (NPSH) availability. Standard horizontal centrifugal pumps simply fail when facilities demand high-pressure and low-volume fluid delivery within tight physical bounds. This intersection of constraints forces engineers to adopt highly specialized machinery.

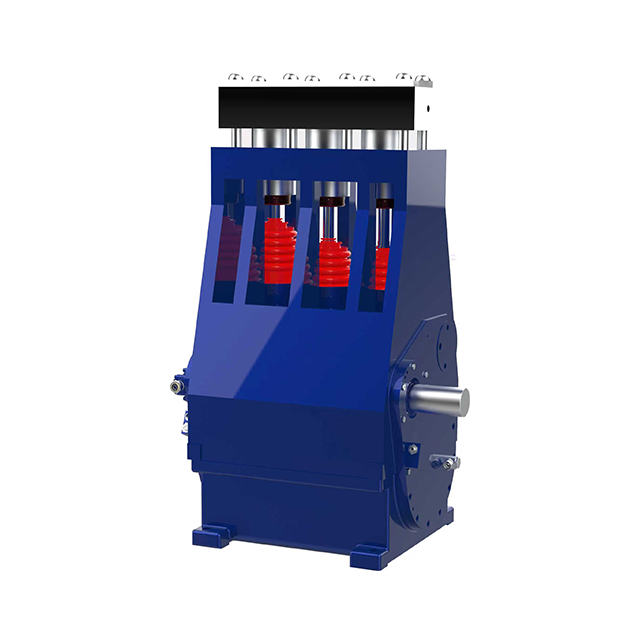

While many default to traditional horizontal configurations, demanding environments necessitate a specific solution: the vertical plunger pump. Moving to a vertical orientation is rarely an accident. It represents a deliberate engineering strategy to solve complex geometric and hydraulic limitations. We will provide a transparent, engineering-focused framework to evaluate this technology. You will discover practical implementation risks, strict evaluation criteria, and actionable shortlisting logic. This guide helps you determine if a vertical high-pressure configuration properly fits your fluid handling system.
Space & NPSH Optimization: Vertical pumps reduce footprint by up to 75% compared to horizontal configurations and can be engineered to operate with minimal NPSH available (NPSHa).
The Plunger Advantage: A vertical plunger pump combines the space-saving benefits of vertical orientation with the high-pressure, precise-volume capabilities of positive displacement.
Evaluation Trade-offs: Selecting a vertical plunger pump requires balancing upfront space savings against specific implementation risks, primarily overhead maintenance clearance and vibration management.
TCO Implications: While initial Capital Expenditure (CapEx) may be higher, lower footprint costs and specialized high-pressure efficiency often drive a lower Total Cost of Ownership (TCO) in appropriate applications.
Facility designers grapple constantly with the footprint constraint. Horizontal machinery consumes massive amounts of expensive floor space. This reality directly impacts facility design layouts. Offshore platforms, modular skids, and densely packed chemical plants face extreme real estate limitations. Every square foot of an offshore platform deck requires structural steel support. Expanding a horizontal footprint increases platform weight and complexity. Engineers must find ways to shrink equipment boundaries without sacrificing hydraulic output.
Simultaneously, engineers face the NPSH dilemma. Pumping fluids near their vapor pressure causes vaporization inside the pump casing. This creates cavitation, which violently destroys internal components. Horizontal configurations keep the suction inlet relatively high relative to the foundation. Vertical configurations allow you to place the hydraulic end much lower. Sometimes, designers install the suction inlet below grade. This physically lowers the fluid entry point. It inherently increases the static head pressure acting on the suction valves. This extra pressure solves marginal or negative NPSH issues.
You must properly frame this decision. Adopting a vertical layout is not merely a default preference. It serves as a deliberate engineering choice to resolve strict system limitations. Horizontal pumps work perfectly when space remains abundant. When space vanishes and vapor pressures rise, vertical designs become mandatory. You specify this equipment to resolve specific geometric bottlenecks and hydraulic shortfalls.
Industrial sectors deploy the Vertical Plunger Pump to conquer severe operational challenges. Broad pumping categories often obscure specific high-pressure capabilities. We must bridge general fluid handling concepts to specialized use cases. Positive displacement technology thrives where dynamic pumps fail.
High-pressure chemical injection represents a primary application. Refineries and chemical plants require accurate dosing of harsh chemicals. They inject corrosion inhibitors, methanol, and biocides into active pipelines. These processes demand extremely low flow rates. However, they also require extreme discharge pressures to overcome pipeline resistance. Plunger configurations guarantee precise fluid volumes per stroke. They deliver this exact volume directly into high-pressure streams.
Oil & gas and hydrocarbon processing facilities heavily rely on vertical systems. Upstream extraction and downstream refining environments process difficult fluids. Facilities handle viscous, toxic, and high-temperature hydrocarbons daily. Mechanical seal integrity remains critical for safety and environmental compliance. Space constraints on offshore rigs make horizontal pumps impossible to install. The vertical orientation shrinks the skid size significantly. It also keeps hazardous leaks contained within a smaller localized drip pan area.
Hydrostatic testing and industrial washdown services also utilize these units. Pipeline construction requires rigorous pressure testing before commissioning. Technicians pump water into pipelines at extreme pressures to verify weld integrity. This testing demands consistent, pulsation-heavy pressure delivery. Industrial washdown systems similarly need high-velocity spray to clean heavy machinery. Vertical units provide this immense power without consuming valuable manufacturing floor space.
You must understand why positive displacement matters in these scenarios. Vertical turbine pumps and centrifugal pumps also save space. However, they handle high volumes at lower, variable pressures. A Vertical Plunger Pump performs a completely different task. It strictly serves high-pressure, precise-metering applications. It forces a fixed fluid volume through the system regardless of pipeline resistance.
Chemical Dosing: Delivers exact inhibitor volumes into pressurized pipelines.
Offshore Hydrocarbons: Processes hot, toxic fluids on space-constrained platforms.
Pipeline Testing: Supplies extreme, fixed-displacement pressure for structural verification.
Heavy Washdown: Powers industrial cleaning nozzles from compact plant utility rooms.
Selecting the correct machinery requires rigorous technical evaluation. You cannot simply swap a horizontal unit for a vertical one. Engineers must assess specific performance metrics and material constraints.
You must thoroughly assess the required discharge pressure against the flow rate. Plunger mechanisms deliver a constant flow volume. This delivery remains steady regardless of changing system pressure. This rigid performance curve creates distinct safety requirements. If a downstream valve closes accidentally, the pump will continue forcing fluid into the pipe. The pressure will spike instantaneously until something ruptures. You must evaluate if this rigid curve matches your system safety limits. Mandatory installation of robust pressure relief valves protects the piping infrastructure.
Performance Metric | Centrifugal Output | Plunger Output |
|---|---|---|
Flow Rate Response | Varies with system pressure | Constant at fixed speed |
Maximum Pressure | Limited by impeller diameter | Limited by motor horsepower |
Overpressure Risk | Pump reaches shut-off head | Requires mechanical relief valve |
Efficiency Profile | Peaks at Best Efficiency Point | High across pressure spectrum |
Fluid characteristics dictate the required construction materials. Standard cast iron cannot survive aggressive chemical injection or sour gas environments. You must identify the requirement for specialized wet-end materials. Highly corrosive fluids require Duplex stainless steel or Hastelloy components. Assess the fluid corrosiveness, toxicity, and abrasiveness carefully. Abrasive solids suspended in the fluid will quickly destroy standard plungers. Engineers often specify ceramic coatings or tungsten carbide plungers to resist severe abrasive wear. Matching the metallurgy to the fluid ensures reliable long-term operation.
Sealing high-pressure fluids requires robust packing designs. Evaluate the specific packing arrangement offered by the manufacturer. Spring-loaded and adjustable packing designs compensate for normal wear. Orientation drastically changes how leak paths behave. In horizontal units, minor packing leaks drip straight down to a baseplate. In vertical orientations, leak paths gravity-drain differently. Fluids can travel down the plunger directly toward the power frame. You must verify the manufacturer's containment design. High-quality designs utilize deflector rings and dedicated recovery chambers. These features prevent aggressive chemicals from contaminating the lubricating oil.
Adopting specialized fluid handling systems introduces unique field challenges. Engineering teams often underestimate the mechanical reality of vertical installations. Recognizing these adoption risks prevents severe maintenance bottlenecks.
Overhead clearance represents the most frequently overlooked implementation risk. Headroom is absolutely critical for maintenance access. When overhauling horizontal machinery, mechanics pull components out sideways. Vertical units require mechanics to lift components straight up. You must outline the necessity for sufficient vertical clearance in your facility design. Mechanics need overhead space to safely remove heavy electric motors. They need space to extract plungers and replace packing assemblies. You must ensure permanent lifting equipment or gantry cranes can physically reach the installation pad.
Vibration and structural resonance require precise engineering. Vertical structures act as tall cantilevers. The motor sits high above the foundation, creating a high center of gravity. We must discuss the critical need for rigid foundation design. Inadequate baseplates amplify normal operational vibrations. Furthermore, positive displacement action creates inherent fluid pulsations. You must install properly sized pulsation dampeners on both suction and discharge lines. Dampeners prevent acoustic harmonic resonance from destroying piping supports. Controlling this vibration prevents premature bearing failure and extends seal life.
Piping strain presents another severe risk. Installers sometimes force misaligned pipes to connect with the pump flanges. Improper suction and discharge piping alignment exerts massive physical stress on the pump casing. In a vertical Vertical Plunger Pump, casing stress distorts the internal geometry. It disrupts the strict alignment tolerances of the plungers moving through the packing boxes. This misalignment causes rapid, uneven wear. You must support all external piping independently to isolate the pump from structural loads.
Verify exact overhead crane hook height before finalizing skid placement.
Design concrete foundations specifically to dampen low-frequency cantilever vibrations.
Install charge-gas pulsation dampeners as close to the discharge manifold as possible.
Utilize flexible piping joints or strict independent supports to eliminate flange strain.
Implement deflector shields to route gravity-fed packing leaks away from the crankcase.
Evaluating manufacturers requires a structured, data-driven approach. You must move beyond basic catalog browsing. Establishing strict shortlisting logic ensures the selected machinery matches your exact operational constraints. Engaging manufacturers effectively requires gathering precise field data before requesting equipment sizing.
Start by compiling comprehensive fluid properties. You cannot properly size positive displacement machinery without exact fluid data. Provide the manufacturer with accurate viscosity profiles at varying temperatures. Identify the exact vapor pressure at operating conditions to calculate NPSH margins. Detail any anticipated solids content. Even minor abrasive particles drastically alter the required plunger coatings and valve types. Vague fluid descriptions lead directly to catastrophic field failures.
Next, define your spatial reality with absolute precision. Specify the exact NPSHa calculated at the suction flange. Do not estimate this number. Detail the strict footprint boundaries of your skid or plant floor. More importantly, document the exact overhead headroom dimensions available. Supply the manufacturer with drawings showing existing structural beams or piping racks above the installation site. Manufacturers can adjust motor mounting styles if they understand your spatial limits.
Finally, interrogate the manufacturer's reliability data. Request Mean Time Between Failures (MTBF) statistics specifically for their vertical packing designs. Do not accept general MTBF data for their horizontal lines. The vertical orientation stresses packing differently due to gravity and plunger alignment. Ask for case studies or reference installations operating in similar fluid conditions. Reviewing specific vertical reliability data protects your plant from unproven prototypes.
Specifying a vertical pump remains a highly strategic engineering solution. It directly resolves severe spatial limitations and difficult hydraulic constraints. You optimize valuable plant real estate while overcoming inherent NPSH deficiencies. When your application demands precise, high-pressure fluid delivery within a restricted footprint, this configuration becomes the definitive engineering choice.
Assess your true spatial limits and exact overhead clearance before specifying equipment.
Calculate your system's available NPSH accurately to prevent destructive fluid vaporization.
Match your metallurgy and packing designs specifically to the fluid's chemical profile.
Install properly sized pulsation dampeners to protect rigid vertical cantilever structures.
Do not let limited floor space compromise your critical process requirements. We encourage technical buyers and facility engineers to take immediate action. Submit your complete system parameters—including exact flow rates, discharge pressure requirements, and NPSHa calculations—for a formal feasibility review and expert pump sizing consultation.
A: Turbine pumps use centrifugal force to meet high-volume, variable-pressure needs. They handle dynamic flow dynamically. A vertical plunger pump uses positive displacement technology. It strictly handles low-to-medium volume, ultra-high-pressure applications. It forces a fixed, precise fluid displacement per stroke regardless of system resistance.
A: They do not necessarily require more frequent maintenance intervals. However, they require completely different accessibility. You must provide overhead cranes to remove motors vertically. Mechanics must maintain highly precise alignment. This prevents gravity from inducing uneven wear on the plungers and packing components.
A: A vertical setup allows you to position the suction valves and fluid chamber much lower. You can place them below grade or deeply submerge them. This physical depth increases the static head pressure at the suction inlet. Higher pressure stabilizes the fluid and prevents destructive vaporization.
