How does a vertical well pump work?

Move beyond basic definitions. When you manage industrial, agricultural, or heavy-duty municipal facilities, you need more than surface-level explanations. Understanding exactly how a well pump works helps you accurately calculate maintenance intervals and assess maximum pressure capabilities. You need robust solutions for continuous-duty fluid handling. Standard centrifugal pumps often fail or lose efficiency under extreme operational conditions. A positive displacement system serves as the ideal choice for these high-pressure demands. This guide breaks down the precise mechanical operations of these fluid handling systems. We help engineering and procurement teams evaluate system compatibility thoroughly. You will learn how to assess implementation risks and specify the exact equipment you need. We explore the physics behind fluid movement, valve mechanisms, and mechanical efficiency. By the end, you will know exactly how to match pump specifications to your most demanding application parameters.

Key Takeaways

• Mechanism to Outcome: Vertical plunger pumps use positive displacement to deliver consistent volumetric flow regardless of system pressure, making them ideal for high-head, deep-well applications.

• Primary Advantage: Exceptional mechanical efficiency and high-pressure capabilities compared to centrifugal alternatives.

• Implementation Risk: The reciprocating action introduces system pulsation; proper piping design and dampeners are non-negotiable for system longevity.

• Cost Reality: Higher initial CapEx and specific maintenance requirements (packing, valves) are offset by lower energy consumption and long-term durability in harsh fluid environments.

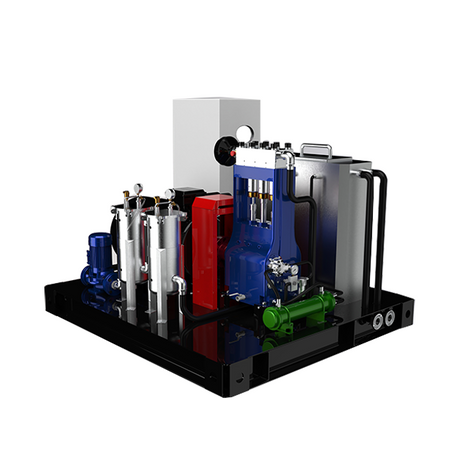

The Core Mechanics: How a Vertical Plunger Pump Operates

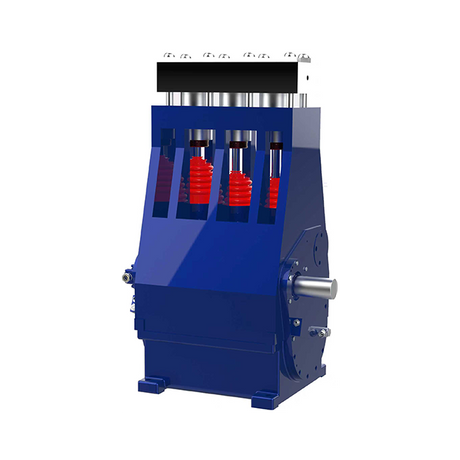

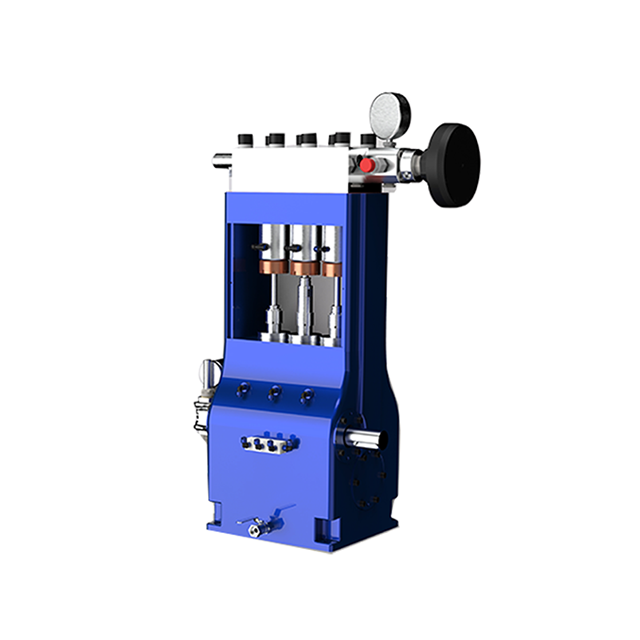

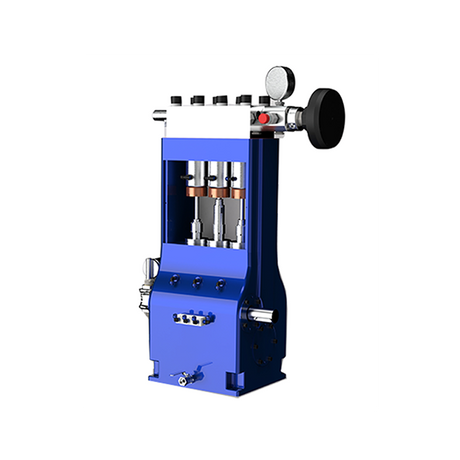

We often see engineers turn to positive displacement mechanics when system pressure demands rise significantly. A Vertical Plunger Pump relies on a very straightforward physical principle. It mechanically displaces a known, fixed volume of fluid during every single stroke. The equipment traps this specific amount of liquid inside a rigid chamber. It then forces the trapped volume out into the discharge piping system. This predictable action guarantees strict volumetric control over your fluid delivery.

The operational cycle consists of two distinct phases. These phases repeat continuously to generate steady fluid movement.

1. Upstroke (Suction Phase): The power end pulls the plunger upward. This retraction creates a sudden mechanical vacuum inside the fluid end cylinder. The downstream system pressure forces the discharge valve closed. Simultaneously, atmospheric pressure or feed pressure pushes the suction valve open. Fluid rushes in to fill the empty cavity.

2. Downstroke (Discharge Phase): The crankshaft drives the plunger downward with immense force. The internal pressure inside the cylinder spikes instantly. This pressure forces the suction valve to slam shut. As the pressure overcomes the downstream resistance, the discharge valve opens. The plunger pushes the fluid out into the system under extremely high pressure.

The vertical orientation provides several distinct operational advantages. It significantly reduces the overall equipment footprint. You save valuable floor space in cramped industrial facilities. The vertical design also allows gravity to assist the fluid feeding process directly into the suction manifold. Most importantly, gravity pulls straight down along the axis of the plunger. This alignment ensures perfectly even wear on the plunger packing. Horizontal configurations often suffer from gravity-induced plunger sag. This sagging creates uneven friction on the lower half of the seals. Vertical designs eliminate this specific mechanical failure mode entirely.

Performance Evaluation: Matching Features to System Outcomes

You must evaluate equipment performance based on strict hydraulic outcomes. Volumetric efficiency remains the defining characteristic of reciprocating technology. These units maintain a near-constant flow rate even as system backpressure fluctuates wildly. Centrifugal pumps behave very differently. Their performance curves show severe drop-offs in flow rate when head pressure rises. If your downstream resistance increases, a centrifugal unit simply stops moving fluid effectively. Positive displacement units ignore downstream resistance. They continue pushing the exact same volume of fluid forward. You only face limitations based on available motor horsepower and mechanical structural integrity.

Fluid handling capabilities dictate where you can deploy these machines safely. You can efficiently move high-viscosity fluids through them. They handle thick crude oils and heavy agricultural sludge without losing volumetric efficiency. You can also pump abrasive slurries successfully. Multiphase liquids present minimal challenges to the stroke cycle. However, you must recognize specific mechanical limitations. Heavy, solid objects can prevent the suction or discharge valves from seating properly. If a valve cannot close fully, the pump loses its positive displacement capability immediately. You must install specialized abrasive-resistant valve designs if you plan to move heavy solids.

Energy consumption outcomes favor this technology heavily in continuous-duty applications. The mechanical efficiency of a reciprocating unit routinely reaches 85 to 90 percent. The system translates rotary mechanical action directly into hydraulic horsepower with minimal parasitic loss. Centrifugal units often struggle to reach 60 or 70 percent efficiency under similar high-pressure conditions. This direct energy conversion reduces your baseline electrical load significantly. You achieve measurable reductions in energy usage over a standard ten-year operating cycle. We see facilities drop their power demands simply by transitioning to positive displacement mechanics.

Pump Performance Profile Comparison

Implementation Realities: Maintenance, Wear, and System Risks

Every reciprocating machine introduces specific system risks into your piping network. You must address pulsation and vibration immediately during the design phase. The start-stop motion of the plungers creates acoustic shock waves. These waves travel through the fluid column continuously. This inherent pulsation causes severe pipe fatigue, weld cracking, and eventual system failure. Proper mitigation is completely non-negotiable. You must install appropriately sized suction and discharge pulsation dampeners. These devices absorb the hydraulic shocks before they reach your rigid piping infrastructure. They ensure smooth, continuous fluid velocity throughout the facility.

You must establish a transparent assessment of consumable wear components. Packing and valves require scheduled attention.

• Plunger Packing Maintenance: The tight seal between the moving plunger and the stationary cylinder creates massive friction. You must maintain continuous lubrication to prevent thermal degradation. Heat destroys packing materials rapidly. You can predict replacement cycles accurately by monitoring drip rates at the packing gland. When the drip rate exceeds the manufacturer tolerance, you swap the packing rings.

• Valve and Seat Degradation: Valves smash against seats millions of times per month. Fluid corrosiveness accelerates this mechanical impact damage. Abrasive particles act like sandpaper every time fluid rushes past the valve edges. You must inspect these components during every scheduled shutdown. We recommend keeping spare valve assemblies on hand to minimize downtime.

Infrastructure requirements often catch procurement teams off guard. You must consider the structural environment surrounding the installation site. Vertical units require substantial overhead height clearance. Maintenance technicians must pull plungers straight up and out of the fluid end. You typically need overhead cranes, jib hoists, or portable gantries to perform this work safely. If you install the unit under a low ceiling, you will find it impossible to service the fluid end. Always verify your vertical clearance measurements before pouring the concrete foundation.

Shortlisting Logic: Specifying the Right Pump for Your System

You must establish strict success criteria before contacting a manufacturer. Guessing your operational parameters leads to catastrophic equipment failure. First, define your absolute required flow rate. Measure this in gallons per minute (GPM) or barrels per day (BPD). Second, determine your maximum anticipated discharge pressure in PSI. Do not rely on average pressure. You must design for the absolute peak pressure the system might encounter. We use these two exact numbers to size the fluid end cylinders and specify the required motor horsepower correctly.

Material selection defines the operational lifespan of your equipment. You must implement a strict evaluation framework for fluid-end metallurgy. We base these decisions entirely on the chemical properties of the fluid. Standard carbon steel works for clean, non-corrosive water. If you pump fluids with high chloride content, you must upgrade to duplex stainless steel. Chlorides cause rapid pitting and stress corrosion cracking in standard alloys. For highly abrasive environments, you apply hardened tungsten carbide coatings directly to the plungers. These specialized coatings resist scoring and drastically extend the life of the packing seals.

Operational Parameter Selection Framework

You face a critical decision regarding RPM and stroke length optimization. You can achieve your target flow rate in two different ways. You can run a larger pump at very slow RPMs. This approach dramatically reduces component wear. It increases the lifespan of valves, plungers, and packing significantly. Alternatively, you can run a smaller pump at much higher RPMs. This reduces the physical size and footprint of the equipment. However, running fast increases friction, heat, and mechanical impact forces. Your maintenance frequency will increase rapidly. We generally advise running larger equipment slowly for continuous, 24/7 industrial duties.

Take immediate action to audit your existing suction conditions. Calculating Net Positive Suction Head available (NPSHa) prevents cavitation. Cavitation occurs when liquid turns into vapor inside the pump cylinder. These vapor bubbles implode violently under pressure, destroying metal components instantly. Calculate your absolute feed pressure, subtract friction losses, and subtract the fluid's vapor pressure. Compare your final NPSHa to the manufacturer's required NPSHr. Your available head must always exceed the required head safely. Consult with application engineers to verify these hydraulic calculations before finalizing any equipment specifications.

Conclusion

A vertical reciprocating pump represents an investment in extreme high-pressure reliability. It ensures precise volumetric delivery in environments where other fluid handling technologies fail. You achieve superior mechanical efficiency and handle demanding fluids easily. By understanding the mechanical stroke cycle and wear components, you can predict maintenance intervals accurately.

To ensure long-term success, focus on these critical next steps:

• Match your fluid-end metallurgy perfectly to the chemical properties of your process fluid.

• Install properly sized pulsation dampeners on both suction and discharge lines immediately.

• Verify you have sufficient overhead clearance to pull plungers safely during maintenance.

• Calculate your NPSHa thoroughly to prevent destructive cavitation in the fluid cylinder.

We encourage you to take the next step in your specification process. Download a detailed technical spec sheet to review precise dimensional data. Utilize a standardized pump sizing calculator to verify your flow and pressure requirements. Contact an application engineer today to discuss your specific infrastructure and ensure perfect system compatibility.

FAQ

Q: Why choose a vertical plunger pump over a horizontal plunger pump?

A: The primary advantage is the elimination of gravity-induced plunger sag. In horizontal pumps, gravity pulls the plunger down against the bottom of the packing, causing uneven wear and premature leaks. Vertical orientation keeps the plunger perfectly centered. Additionally, it offers a much smaller footprint, saving valuable floor space, and allows gravity to assist fluid feeding directly into the suction manifold.

Q: Can a vertical well pump handle abrasive well water?

A: Yes, they can handle abrasive fluids effectively, but you must specify the correct materials. You need hardened tungsten carbide coatings on the plungers to resist scoring. You also must install specialized abrasion-resistant valves and seats. Be aware that pumping abrasive liquids will naturally shorten your maintenance intervals compared to pumping clean water.

Q: What happens if the pump runs dry?

A: Running dry causes immediate, catastrophic failure. Plunger packing relies on the process fluid for continuous cooling and lubrication. Without fluid, massive friction generates extreme heat instantly. This thermal spike melts the packing material, scores the plungers, and can destroy the entire fluid end. You must install low-pressure shut-off sensors to kill the motor before dry-running occurs.
