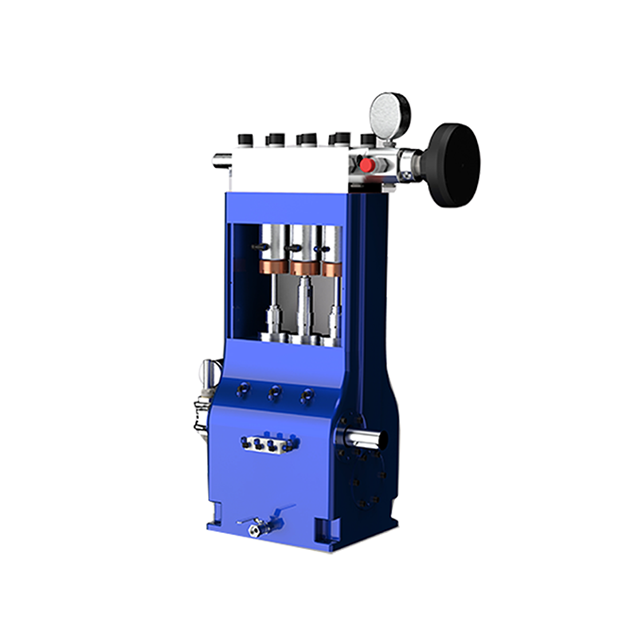

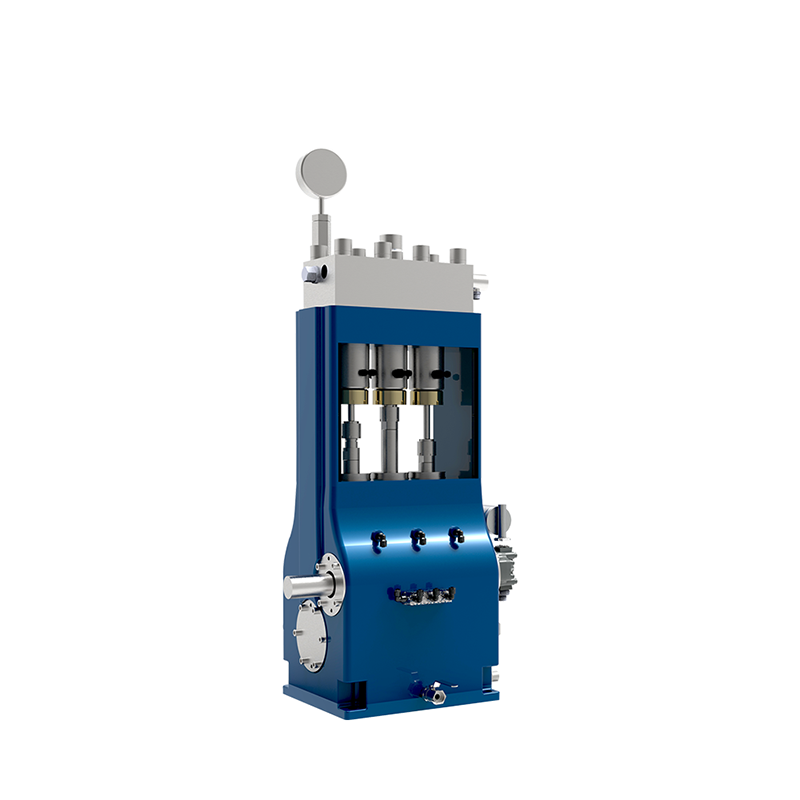

Stable-Output Vertical Plunger Pump for Water Jet

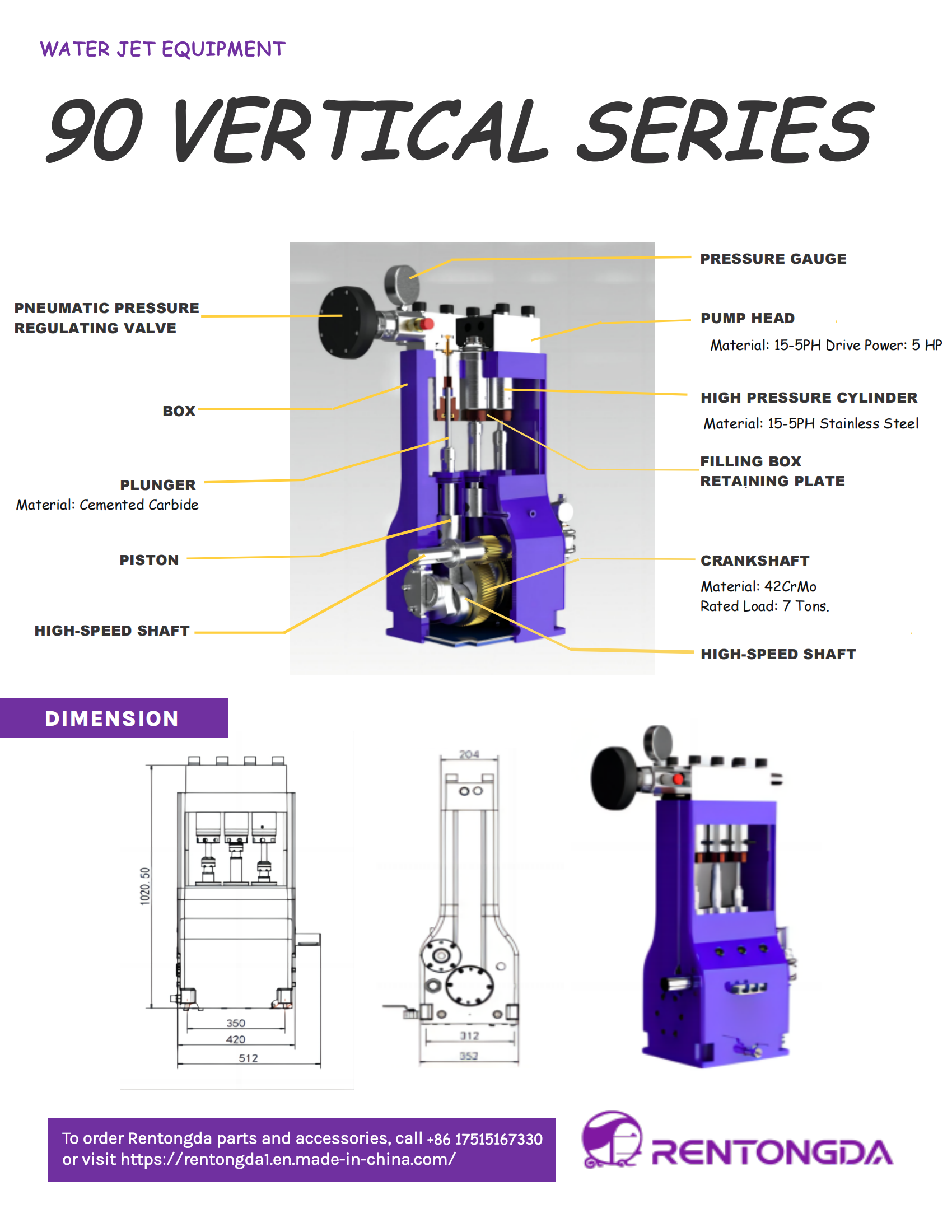

The RTD-90 vertical-high pressure plunger pump series, developed with advanced imported technology, features a compact structure, compact size, lightweight design, and high efficiency. The power end employs an export-grade housing with forced lubrication. The herringbone gear transmission between the high-speed shaft and crankshaft ensures smooth, reliable operation, low friction coefficient, high lubrication efficiency, minimal noise, and low power-end temperature rise, making it ideal for extended continuous operation.

The fluid end, incorporating German-imported technology, boasts rational design, ease of maintenance, and dependable performance. This pump series is well-suited for applications such as cleaning various traffic markings and removing rubber deposits from airport runways.

Additionally, the RTD-90-Vertical serves as a high-pressure testing pump for a wide range of applications including powder metallurgy, rock breaking and coal extraction using high-pressure water jets, test benches, as well as for testing rubber hoses, metal pipes, valves, oilfield drilling wellheads, and more. It is capable of pumping clean water, emulsions, and other chemically active liquids, offering compatibility with multiple power sources.

Stable Output Performance: Pressure fluctuation is limited to ±2 bar, ensuring uniform cleaning and jetting results .

High Energy Efficiency: IE4 premium efficiency motor reduces electricity consumption by 18% annually compared to IE3 models .

Low Maintenance Design: Sealed bearing system and easy-access service panel cut maintenance time by 40% .

The RTD-90 Vertical High-Pressure Plunger Pump is a high-efficiency system optimized for continuous industrial water jet applications. This vertical triplex plunger pump features a hydro-dynamically balanced crankshaft and low-friction PTFE seals , achieving mechanical efficiency of 92% —5% higher than industry averages . Key metrics include a maximum pressure of 13,050 psi (900 bar) , a flow rate of 32 gpm (121 L/min) , and a noise level of 75 dB(A) at 1 meter . Equipped with self-lubricating plungers and an automatic oil level monitor, it requires minimal operator intervention during extended use .

Continuous Production Line Cleaning: Removes coolant residues from metal processing lines and food particles from packaging equipment .

Heat Exchanger Maintenance: Cleans tube bundles in HVAC systems and industrial heat exchangers without disassembly .

Water Jet Cutting Support: Provides stable high-pressure water supply for abrasive water jet cutting of metal and composite materials .

Q: What is the maximum fluid temperature it can handle?

A: It supports fluid temperatures up to 95 °C (203 °F) , suitable for hot water cleaning applications .

Q: Does it have remote monitoring capabilities?

A: Yes, the built-in IoT module transmits pressure, flow, and temperature data to a cloud platform for real-time monitoring .

Q: What is the warranty coverage for this pump?

A: The pump core has a 3-year warranty , and wear parts (seals, plungers) are covered for 12 months .
