RTD-200
| Quantity: | |
|---|---|
Produced in a 20,000m² facility equipped with CNC machining centers, each pump undergoes 72 hours of pressure testing and 100% performance inspection before shipment. The manufacturer operates a provincial-level high-pressure pump engineering research center, ensuring continuous technology upgrades .
The triplex plunger design with ceramic-coated plungers minimizes internal leakage (≤0.5L/h) and maximizes water velocity for jetting. It maintains stable pressure even during intermittent operation, critical for root cutting in sewer lines and scale removal in heat exchangers .
Offers tailored solutions for voltage (220V/380V/440V), mounting type (horizontal/vertical), and seal materials (NBR/Viton/EPDM) to meet regional requirements. The global after-sales network provides 48-hour response for maintenance and replacement parts .
Input Speed:1490rpm | RTD-200 | |||||
Plunger Reciprocating Frequency:366rpm | Pressure Mpa | |||||
Plunger Diameter | Flow Rate | 110kw | 132kw | 160kw | 200kw | |
mm | m³/h | L/min | ||||
15.875 | 1.57 | 26 | 220 | 264 | ||
18 | 2.02 | 34 | 168 | 201 | 245 | |
20 | 2.50 | 42 | 136 | 163.4 | 198 | 247 |
22 | 3.02 | 50 | 114 | 135 | 166 | 208 |
24 | 3.60 | 60 | 95 | 115 | 138 | 173 |
26 | 4.22 | 70 | 82 | 95 | 118 | 148 |
28 | 4.89 | 82 | 70 | 83 | 100 | 126 |
30 | 5.62 | 94 | 63 | 73 | 88.5 | 110 |
32 | 6.39 | 106 | 55 | 64 | 80 | 97 |
35 | 765 | 127 | 46 | 54 | 66 | 81 |
38 | 9.01 | 150 | 39 | 45 | 56 | 69 |
40 | 9.99 | 166 | 35 | 42 | 50 | 62 |
45 | 12.64 | 210 | 28 | 33.5 | 40 | 49 |
48 | 14.38 | 240 | 24 | 29 | 35 | 43 |

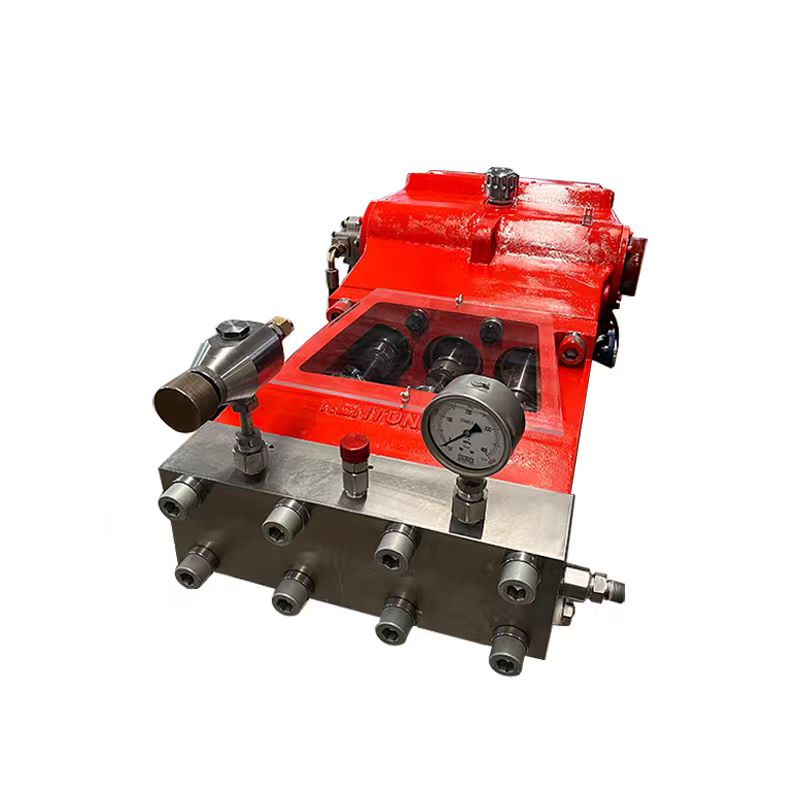

The High Pressure Plunger Pump for Jetting (RTD-200) is a premium industrial pump manufactured by a leading Chinese enterprise with over 40 years of hydraulic engineering experience . Engineered specifically for high-impact jetting applications, this pump delivers a maximum pressure of 200bar and a flow rate of 100L/min, making it ideal for sewer jetting, surface preparation, and industrial pipeline cleaning . It holds ISO 9001:2015 and CCS (China Classification Society) certifications, with design patents covering its anti-cavitation valve system and low-friction plunger assembly . The pump’s modular structure allows easy integration with diesel/gasoline engines or electric motors (15-30HP).
Used in municipal sewer jetting trucks to clear blockages (roots, sediment) with jetting distances up to 100 meters. Compatible with rotating jet nozzles for 360° pipeline cleaning .
Removes rust, paint, and mill scale from steel structures, ships, and storage tanks. When paired with abrasive additives, it prepares surfaces for coating adhesion (SSPC-SP10 standard) .
Cleans mining equipment (conveyors, screens) and agricultural machinery (harvesters, irrigation systems), with corrosion-resistant options for fertilizer or mineral-laden water .
With proper maintenance (oil change every 500 hours, seal replacement every 2,000 hours), the pump’s service life exceeds 8,000 working hours—30% longer than imported counterparts .
Yes, the pump can be configured for 50Hz/60Hz power systems and 220V-440V voltages. Custom wiring harnesses are available for specific regional electrical codes .
Parts (plungers, valves, seals) are available through authorized distributors worldwide. Provide the pump’s serial number (located on the nameplate) for precise part matching, with typical delivery times of 3-7 business days .
