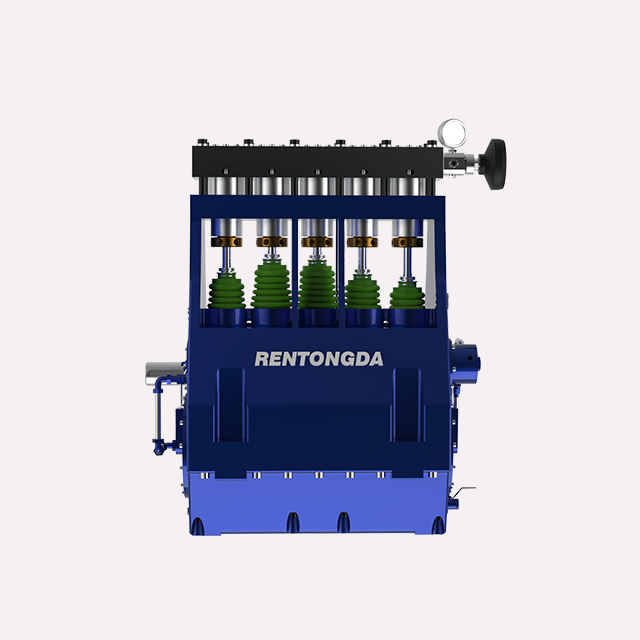

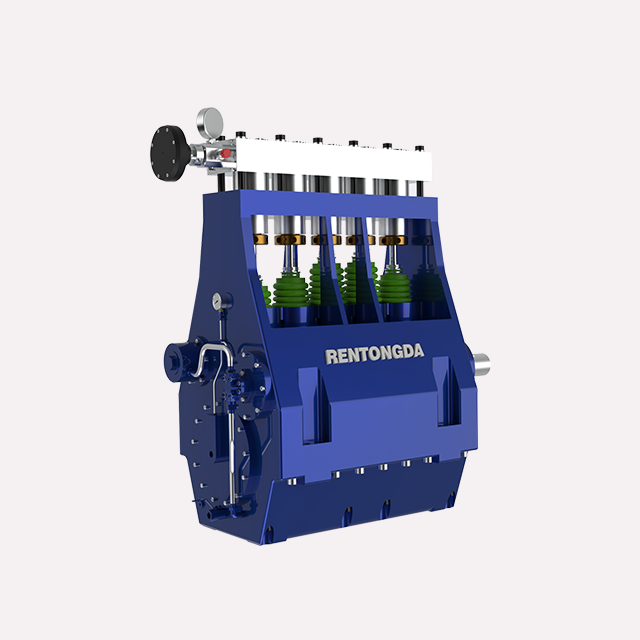

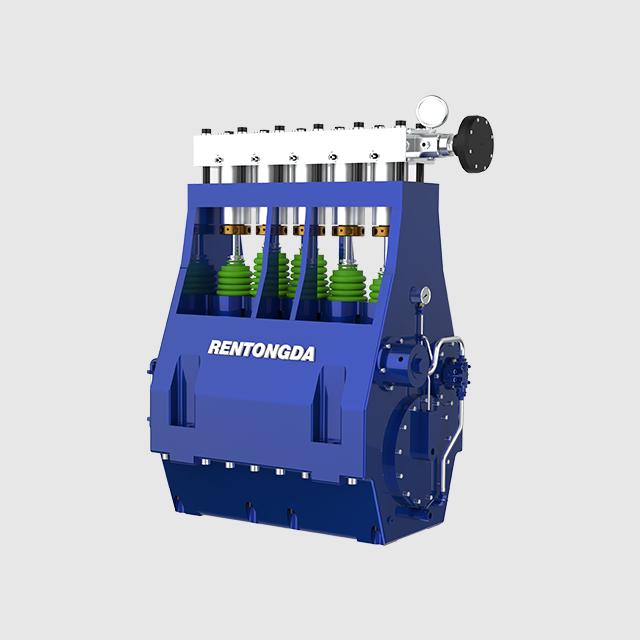

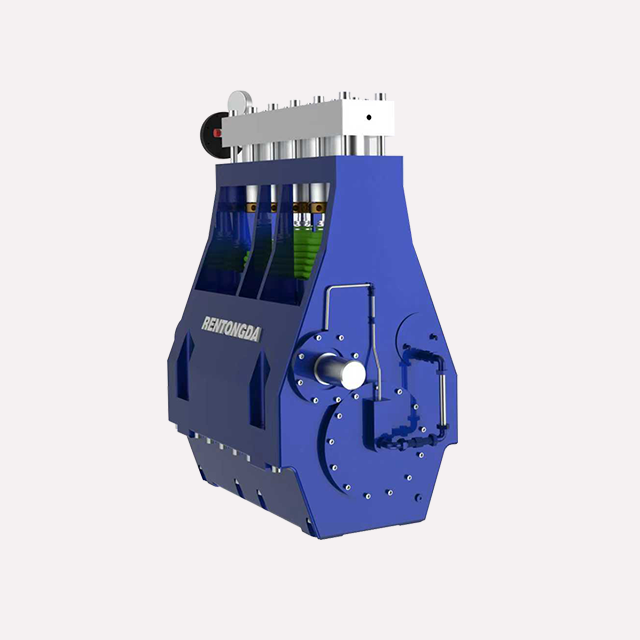

RTD-800
| Quantity: | |
|---|---|
1. Advanced Suction System – Anti-Cavitation Design
Circumferential inlet structure maximizes inlet efficiency
Effectively prevents dry suction and cavitation
Reduces inlet flow velocity and disperses suction impact
Balances valve body load and protects internal components
2. Optimized Central Discharge Structure
Shortest and smoothest discharge flow path
Minimizes pressure loss and flow resistance
Counteracts lateral offset loads to protect sealing components
Promotes gas–liquid separation and reduces bubble retention
3. Arc-Cut Waist Valve Body Design
Smooth flow-path transitions eliminate vortices
Reduces pressure loss and improves hydraulic efficiency
Distributes high-pressure stress evenly
Enhances pressure resistance and structural strength
Allows impurities to be flushed out effectively, reducing clogging risks
4. High Stability & Long Service Life
Flow and pressure stability significantly improved
Valve group service life extended by more than 50%
Suitable for higher pressure and higher speed operation
Low vibration and reliable long-term performance

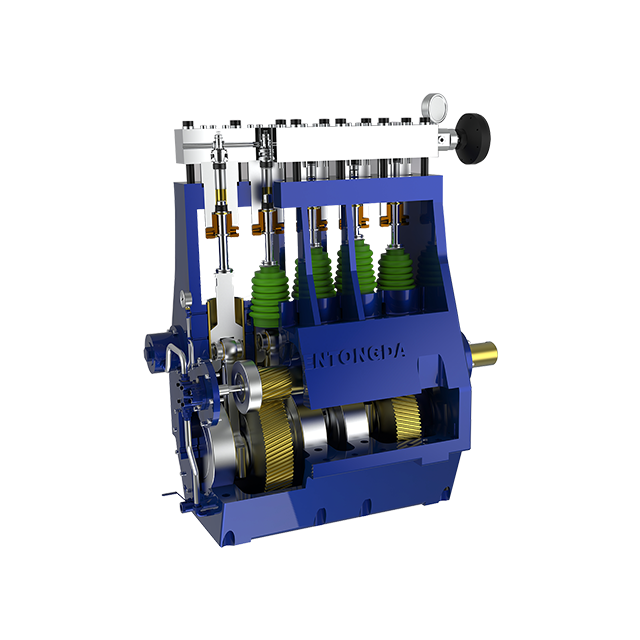

5. Heavy-Duty Vertical Structure
Vertical layout improves load distribution
High-strength crankshaft, crosshead, connecting rod, and bearings
Polymer seals ensure reliable sealing under high pressure
Designed for continuous industrial operation
1.Industrial Sectors---Suitable for a wide range of manufacturing and processing industries, providing reliable high-pressure water delivery for equipment operation, testing, and maintenance.
2.Cleaning&Descaling---Ideal for removing scale, rust, and deposits from condensers, heat exchangers, boilers, evaporators, and pipelines, ensuring optimal heat transfer efficiency and extending equipment lifespan.
3. Metallurgical Industry--- Supports high-pressure cleaning and pressure testing in steel plants, smelters, and metal processing facilities; also applicable for powder metallurgy and surface treatment operations.
4. Oilfield Operations---Performs well in wellhead cleaning, oil pipeline maintenance, hydraulic fracturing support, and high-pressure testing of drilling equipment.
5. Hydraulic Systems---Acts as a reliable power source for hydraulic equipment, pressure testing of hoses and valves, and high-pressure water jet-assisted cutting or material removal.
6.Food&Pharmaceutical---Suitable for hygienic cleaning of production lines, tanks, and containers, as well as precise high-pressure washing in environments with strict sanitary requirements.
7. Industrial Construction---Applicable for high-pressure water jetting in concrete removal, surface preparation, paint stripping, and other construction-related cleaning and demolition tasks.
Q: Are you a trading company or manufacturer?
A:Dezhou Rentongda Fluid Technology Co., Ltd is a real integrated set of industry and trade company, producing with our own factory.
Q:How about your pump price?
A:We are sure our price is factory price, and insist on high quality for our long-term cooperation.
Q: How does your factory do regarding quality control?
A:Quality is a priority. we always attach great importance to quality control from the very beginning to the very end.
Q: How to do if the pump or parts have operation problems within your warranty?
A: Tell me details timely, and show me pictures, we will send you the pump solution at once without any hesitation.
Q: Which types of pump units do you mainly sell?
A:4200Pump 250Pump 200Pump 3D2Pump 3D3QPump 90Vertical Pump 4200Vertical 500Vertical 800Vertical etc.
Q: We don't know which pump model we need, can you help us?
A: A: yes, please tell me your detailed requirements, including liquid, flow rate, head, etc our engineers' team will calculate & select the most suitable pump model for you, and offer a pump solution for you.
