Industrial Plunger High-Pressure Pump for Cleaning

Durable Construction: The forged metal fluid end and stuffing boxes made of duplex stainless steel ensure resistance to corrosion and high-pressure fatigue, extending service life by 30% compared to standard pumps .

Efficient Power Transmission: With a mechanical efficiency of 90% , the pump minimizes energy loss, while the optional gear reducers (ratios from 2.27:1 to 5.56:1) allow precise speed adjustment for different cleaning tasks .

Quick Maintenance: Multiple plunger packing arrangements and bolt-on accessories enable component replacement without disassembling the entire unit, reducing downtime to less than 2 hours .

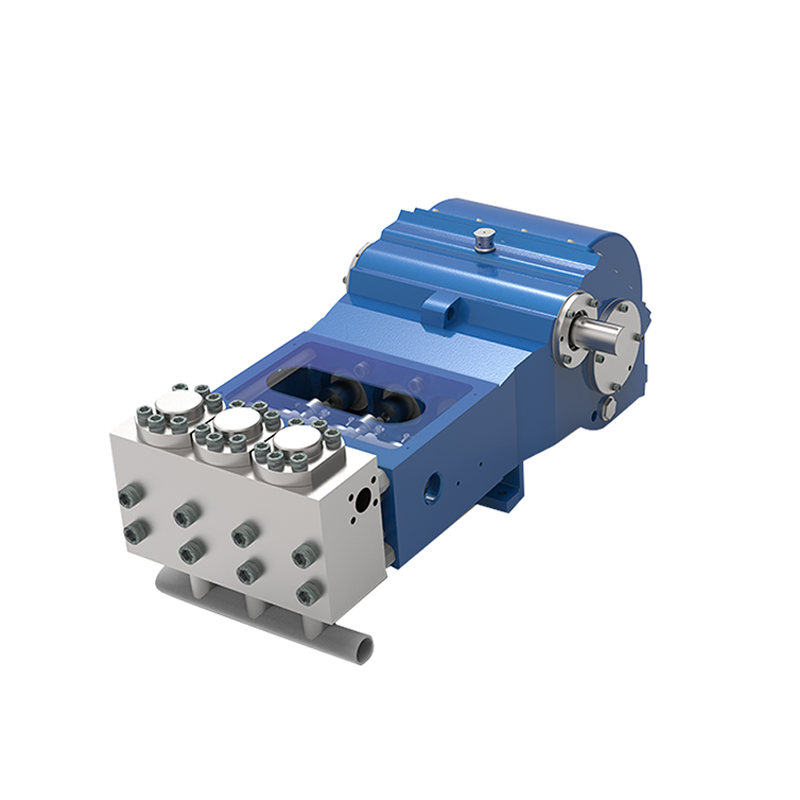

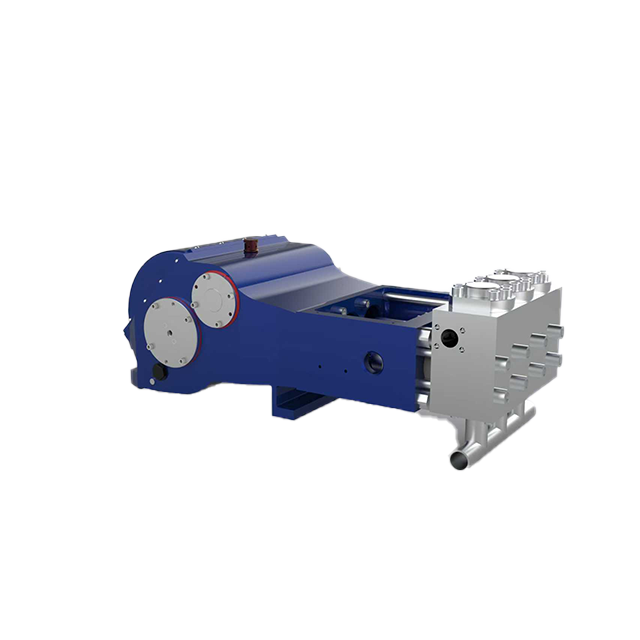

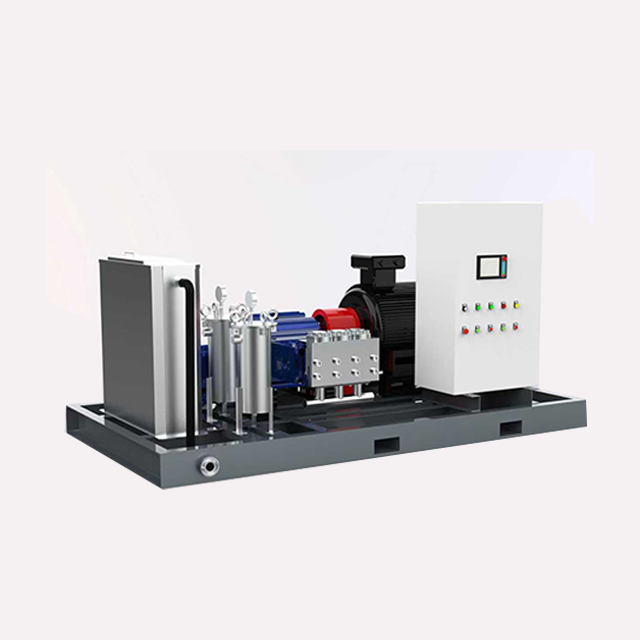

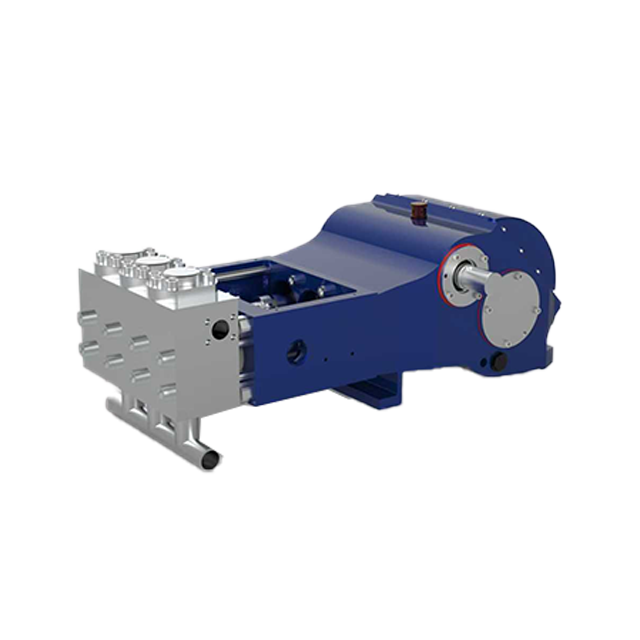

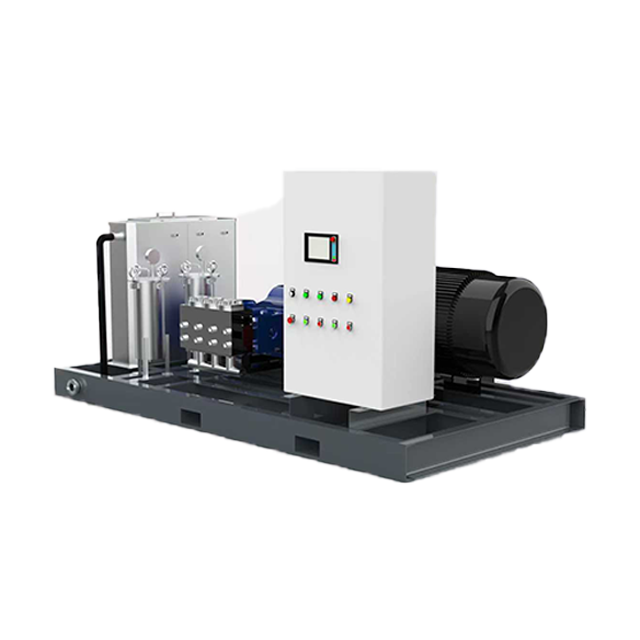

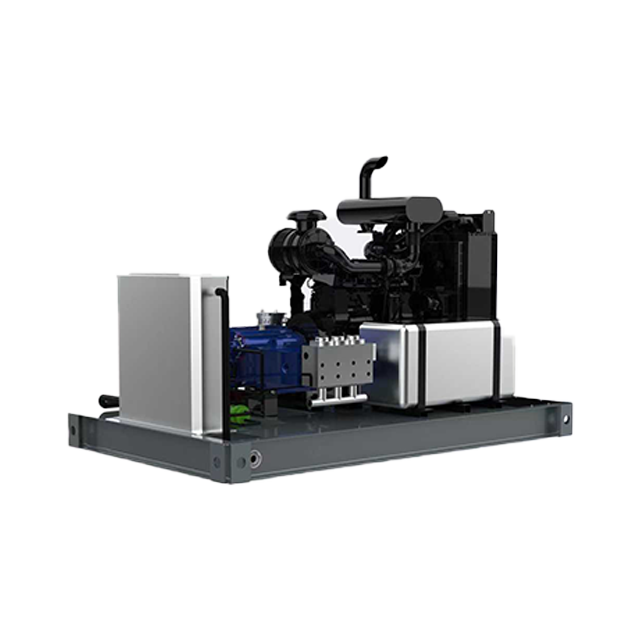

The RTD-250T High-Pressure Pump Water Blasting Machine is a heavy-duty cleaning solution engineered for industrial-scale debris removal and surface treatment. As a triplex power pump, it integrates a robust fluid end constructed with cast aluminum-bronze or forged duplex stainless steel , paired with a double-extended crankshaft for stable operation . Its core performance spans three pressure grades: the H-model reaches 5,000 psi (345 bar) , the M-model hits 3,030 psi (209 bar) , and the L-model delivers 1,540 psi (106 bar) , with corresponding flow rates up to 71.7 gpm (271.4 L/min) at maximum speed . Equipped with tungsten carbide-coated plungers or solid ceramic plungers, it resists wear even during prolonged water blasting sessions .

Heavy Industry Cleaning: Removes rust, paint, and scale from steel structures, offshore platforms, and ship hulls using high-pressure water jets .

Infrastructure Restoration: Cleans concrete bridges, road surfaces, and storage tanks, effectively eliminating oil stains and chemical residues .

Manufacturing Support: Maintains machinery in automotive, aerospace, and cement plants by blasting away metal shavings and industrial deposits .

Q: What is the maximum continuous operating time of the RTD-250T?

A: The pump supports 24/7 continuous operation when equipped with the optional packing lubricator, thanks to its forced lubrication system that prevents overheating .

Q: Can it handle abrasive additives in the water?

A: Yes, the solid ceramic plungers and enclosed impeller design tolerate low-concentration abrasives (up to 50 ppm), making it suitable for descaling applications .

Q: What power supply is required?

A: It operates on 3-phase industrial power and is compatible with both 50Hz and 60Hz frequencies, with a rated power of 250 hp (187 kW) .
