What is the difference between a submersible pump and a vertical pump?

Fluid handling systems represent the beating heart of modern industrial infrastructure. Choosing between a submersible pump and a vertical pump demands a critical balance. You must carefully weigh surface footprint, upfront capital expenditure (CAPEX), and long-term operating expenses (OPEX). Both pump types effectively handle challenging fluid elevations and tight space constraints. However, their core architectural differences fundamentally alter how industrial facilities approach installation, motor cooling, and risk mitigation. Making the wrong choice often leads to catastrophic unexpected downtime or severely bloated maintenance budgets over the system's active lifecycle. This guide skips basic introductory definitions to deliver a rigorous technical evaluation. We will explore structural performance limits, common failure modes, and long-term maintenance realities. By understanding these specific operational variables, your engineering and procurement teams can confidently make an evidence-based selection for your next major fluid handling project.

Key Takeaways

• Motor Placement Drives Maintenance: Submersible pumps locate the hermetically sealed motor underwater (requiring full system extraction for repairs), whereas vertical pumps keep the motor above ground for immediate access.

• Efficiency vs. Footprint: Vertical pumps generally offer higher long-term efficiency and easier motor upgrades, but submersibles completely eliminate surface noise and footprint.

• Application Specificity: For deep-well municipal water, vertical turbines and submersibles compete directly. However, for high-pressure, precision industrial applications, a vertical plunger pump offers volumetric efficiency that standard submersibles cannot match.

• Vulnerability Profiles: Submersibles are highly vulnerable to seal degradation and fluid ingress; vertical pumps are vulnerable to shaft misalignment and bearing wear over long depths.

Structural Architecture and Drive Mechanisms

Let us examine how these two distinct systems physically operate. The submersible approach relies heavily on a close-coupled design. Manufacturers place the driving motor and the pump fluid end inside a single, tightly sealed submersible housing. Installers then submerge the entire unit completely underwater. Cooling mechanisms rely entirely on the surrounding fluid. The moving liquid absorbs and dissipates internally generated motor heat. This design transparently assumes you can guarantee minimum fluid levels. It also requires adequate fluid flow velocities past the motor housing at all times to prevent catastrophic overheating.

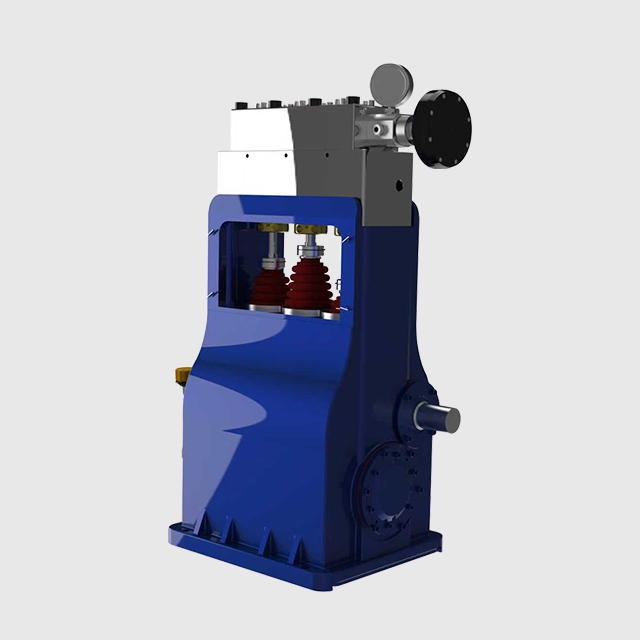

Conversely, the vertical pump approach keeps vital mechanical components separated. Facilities mount the heavy motor securely on the surface above the wet pit or well. A rigid vertical shaft, commonly known as a line shaft, connects this surface motor to the fluid end located below. Some industrial configurations utilize a strictly surface-level vertical alignment for easier integration. Facilities often require highly specific positive displacement vertical architectures for specialized processing. For instance, a Vertical Plunger Pump delivers extreme high-pressure, low-pulsation capabilities. It excels in heavy industrial surface applications where standard multi-stage centrifugal submersibles would simply fail to maintain the necessary volumetric efficiency.

Implementation realities differ significantly between these two structural choices. Vertical pumps demand strict vertical alignment during the initial installation phase. Proper alignment prevents destructive shaft vibration and premature bearing wear. Submersibles forgive deviated or crooked well casings easily. They simply drop straight down, suspended safely by their rigid discharge pipe.

Maintenance, Accessibility, and Lifecycle Costs

Routine servicing looks vastly different for each architectural style. Surface motors on vertical pumps allow for immediate, routine visual inspections. Maintenance crews easily lubricate thrust bearings, monitor vibration levels, and perform thermal imaging. They can execute fast motor replacements or upgrades without ever touching the submerged fluid end. This accessibility sharply increases the Mean Time Between Failures (MTBF).

Submersibles operate under a strict "out of sight, out of mind" reality. You usually only notice a mechanical problem upon complete system failure. Manual inspection remains impossible without pulling the entire pump from the operational well. Therefore, diagnostic tracking relies entirely on integrated sensors. These internal sensors monitor moisture ingress or abnormal temperature spikes. When a sensor trips, the entire unit must come offline immediately.

Consider the heavy operational cost of extraction, often called the "pull" factor. Pulling a submersible unit out of a deep well or sump requires heavy lifting equipment. It demands significant facility downtime, heavy crane scheduling, and specialized rig crews. Uncoupling a vertical pump motor takes minimal time. Site crews can safely swap surface components using a standard A-frame hoist. They restore system flow in mere hours rather than wasting valuable days waiting for specialized extraction equipment.

Performance Capabilities and Fluid Handling

We must rigorously evaluate head pressure and flow rates to determine proper hydraulic fit. Submersibles excel in applications needing high flow combined with moderate-to-high head pressure. They achieve this performance via multiple centrifugal impellers stacked within the housing. As fluid passes through each stage, the pump progressively builds kinetic energy and pressure.

Vertical options handle highly specialized tasks far beyond standard fluid transfer. Vertical turbines effortlessly push massive municipal water flows across vast distances. Conversely, specific industrial processes demand low-volume precision. For extreme high-pressure requirements like harsh chemical injection or reverse osmosis filtration, a Vertical Plunger Pump becomes essential. In these demanding scenarios, volumetric efficiency remains strictly non-negotiable. Centrifugal designs simply cannot compete against positive displacement precision when pushing highly viscous or high-pressure fluids.

Net Positive Suction Head (NPSH) drives many core engineering decisions. Submersibles naturally solve NPSH availability issues. Being fully submerged guarantees adequate suction pressure at the first-stage impeller eye. Vertical pumps often utilize clever engineering to match this distinct benefit. They employ customized barrel or canister designs, often called can pumps. These structures artificially create the required NPSH margin. They achieve this crucial hydraulic balance without demanding a massive, deep subterranean facility footprint.

Hydraulic and Structural Comparison Chart

Vulnerabilities, Risk Assessment, and Compliance

Every fluid handling system carries inherent operational risks. Submersibles face severe vulnerability regarding their mechanical seals. A catastrophic mechanical seal failure leads directly to rapid motor flooding. Once conductive fluid breaches the sealed housing, the internal motor shorts out permanently. Environmental compliance adds another layer of complex risk. Submersible motors frequently use dielectric oil for internal cooling and bearing lubrication. If the exterior housing cracks, this oil leaks directly into the surrounding water. This poses severe contamination risks, strictly violating environmental regulations within municipal drinking water systems.

Vertical pumps present different vulnerability profiles focused heavily on mechanical wear. They heavily rely on line-shaft bearings suspended along the column pipe. These bearings wear down significantly over time, especially in deep-setting applications handling abrasive fluids. Operating these centrifugal pumps outside their Preferred Operating Region (POR) invites severe, damaging shaft vibration. Surface vulnerabilities also demand strict attention. You must actively protect the surface-mounted motor from harsh weather, localized flash flooding, and ambient temperature extremes. High-quality weatherproof enclosures remain an absolute necessity for all outdoor industrial installations.

Decision Framework: Shortlisting the Right Pump

Engineering teams need a practical evaluation matrix to finalize major procurement decisions. Use these rapid guidelines based on real-world field implementation realities:

1. Choose a Submersible Pump if: The designated installation area proves highly prone to uncontrollable surface flooding. You must eliminate all surface mechanical noise for nearby residential zones. The existing underground well casing is noticeably crooked or deviated. Upfront capital expenditure is strictly capped for the current fiscal quarter.

2. Choose a Vertical Turbine Pump if: The industrial facility requires a highly reliable operational lifespan exceeding 20 years. You maintain dedicated on-site maintenance crews capable of servicing large surface motors. The system demands the highest possible hydraulic efficiency for continuous, massive municipal water flow.

3. Choose a Vertical Plunger Pump if: The demanding application demands precise, ultra-high-pressure output. You must process highly viscous fluids safely and consistently. Strict volumetric accuracy is mandatory, meaning standard centrifugal submersibles would simply slip, cavitate, or fail instantly.

Conclusion

• Choosing the ideal pumping architecture rarely involves naming one broadly "better" overall option. You must actively identify which failure modes and routine maintenance procedures your facility can realistically handle.

• Surface access drastically improves emergency response times and simplifies motor diagnostics. Meanwhile, fully submerged systems brilliantly eliminate noise complaints and surface footprint constraints.

• Carefully calculate the true logistical impact of a single deep-well extraction event for your site. Weigh this potential heavy downtime against any perceived initial installation savings.

• Analyze your exact head pressure and viscosity requirements carefully. Always cross-reference your strict volumetric demands against proven API industry pump curves before finalizing your equipment specifications.

FAQ

Q: Can a vertical pump run dry?

A: The surface motor remains perfectly safe during a dry run event. However, the submerged fluid end and line-shaft bearings will suffer catastrophic damage. If the system relies on product-lubricated bearings, running dry causes rapid overheating and mechanical seizing within minutes.

Q: How does the lifespan of a submersible pump compare to a vertical pump?

A: Vertical pumps frequently exceed 20 to 30 years of operational life given proper surface motor maintenance. Submersible units typically require major overhauls or complete replacement every 5 to 15 years. Their lifespan heavily depends on fluid abrasiveness and harsh thermal cycling underwater.

Q: What is the difference between an immersible pump and a submersible pump?

A: Industry professionals often confuse these two terms. Immersible pumps are dry-pit pumps featuring motors sealed specifically to survive accidental, temporary flooding. Submersibles utilize a completely different design. Engineers build them specifically to operate continuously while fully submerged underwater for their entire lifecycle.
