How to check vertical pump alignment?

Views: 0     Author: Site Editor     Publish Time: 2026-07-22      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Many operators wrongly assume vertically mounted pumps remain completely "self-aligning" straight out of the box. They trust standard rabbet fits and C-face motor mounts to do the heavy lifting automatically. This assumption proves dangerous in actual industrial facilities. Frame misalignment stands as a leading indicator of premature bearing failure. It causes unexpected mechanical seal leaks. Ultimately, this leads to costly unplanned downtime. You cannot afford these frequent operational disruptions.

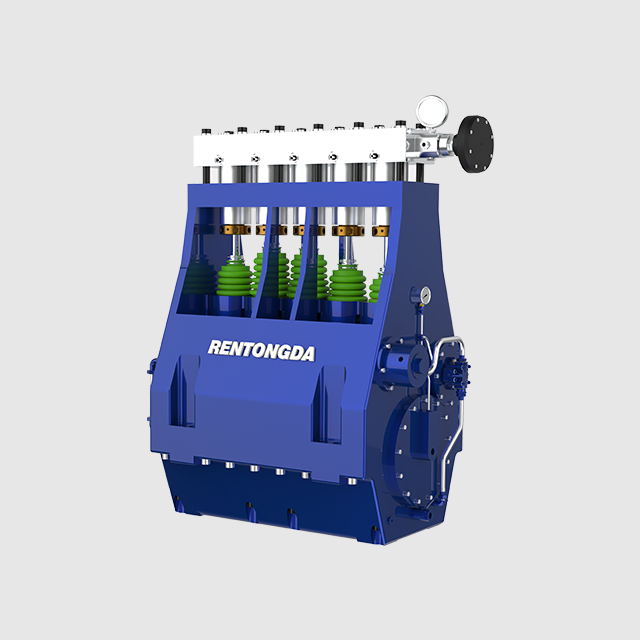

This guide serves as a definitive framework for evaluating various alignment methods. You will understand stringent OEM tolerances. We will explore best practices to ensure highly reliable equipment operation. Precise alignment remains especially critical for high-pressure systems like a Vertical Plunger Pump. Learn how to secure your asset lifecycle effectively.

Key Takeaways

  • Vertical pump alignment requires verifying both angular and offset tolerances; rabbet fits alone do not guarantee alignment.

  • Laser alignment provides verifiable, documented data for compliance, whereas dial indicators require high operator expertise.

  • Soft foot and pipe strain must be resolved *before* alignment checks begin to prevent false readings.

  • Investing in precise alignment protocols reduces maintenance overhead and extends the lifecycle of critical high-pressure pumping assets.

The Financial & Operational Impact of Misalignment

Angular misalignment occurs when two shaft centerlines sit at an angle to each other. Parallel offset misalignment means the centerlines remain parallel but do not meet perfectly. Both conditions generate severe localized stress across the machine train. They force solid steel shafts to bend slightly during every single rotation. This constant bending creates intense cyclic fatigue. Internal bearings bear the brunt of this destructive force. They heat up rapidly, lose lubrication efficacy, and eventually spall.

High-pressure systems demand absolute mechanical precision. A vertically mounted Vertical Plunger Pump tolerates very little centerline deviation. Vertical turbine pumps face similarly strict constraints during daily operation. Destructive vibration in these robust systems degrades shaft packing and mechanical seals rapidly. Fluid leaks contaminate the surrounding environment when seals fail. This creates severe plant safety hazards.

Successful alignment achieves highly specific, measurable outcomes. You will see significantly reduced vibration velocity across the equipment frame. Operations experience a substantially extended Mean Time Between Failures (MTBF). Moreover, well-aligned shafts consume noticeably lower electrical energy. The motor draws less amperage to maintain the required RPM. You secure smoother operation and lower thermal profiles across the board.

Evaluating Alignment Solutions: Dial Indicators vs. Laser Alignment

Industry professionals rely on two primary solution categories. The traditional approach uses mechanical dial indicators. The modern approach utilizes advanced laser alignment systems. Each offers distinct advantages and unique operational challenges.

The Reverse Indicator Method represents the traditional industry standard. Technicians mount precision dial indicators on both the pump and motor shafts. They sweep the shafts manually to read microscopic deviations. This method remains highly cost-effective regarding equipment purchases. However, it requires exceptionally high technician expertise. Operators must account for "bar sag" accurately. Gravity pulls the dial indicator bracket downward constantly. This creates false dimensional readings at the six o'clock position. Technicians must use complex trigonometric calculations to determine the required shim moves.

Laser alignment systems eliminate these manual calculations entirely. They require a high initial capital expenditure. Yet, they deliver automated, highly accurate move calculations instantly. The digital systems offer live move tracking on high-resolution screens. Technicians generate compliance-ready reporting immediately after completion.

We evaluate these solutions across three crucial dimensions below.

Alignment Method Comparison Chart

Evaluation Dimension

Dial Indicators (Reverse Method)

Laser Alignment Systems

Speed of Execution

Slow; requires manual math and multiple physical sweeps.

Fast; automated calculations and live digital tracking.

Repeatability of Data

Low to Moderate; heavily dependent on human skill.

High; sensors eliminate operator reading errors.

Skill-Level Requirement

Very High; demands advanced trigonometric knowledge.

Moderate; software guides the technician step-by-step.

A skeptical note remains necessary regarding modern technology. Laser tools possess clear physical limitations. They are only as accurate as your pre-alignment preparation. A highly advanced laser cannot fix a warped baseplate. It simply tells you exactly how misaligned the machine is. Bad foundations always yield bad alignment data.

Step-by-Step Alignment Verification Process

You must perform critical pre-alignment checks thoroughly. Structural integrity comes first in any reliability program. Inspect the concrete foundation and metal baseplate for hidden cracks. A weak, degrading foundation ruins any subsequent alignment effort.

Next, you must eliminate pipe strain completely. Heavy piping must meet the pump flanges naturally. Flange bolting should never move the pump casing. Tightening bolts often shifts the equipment forcefully. If this happens, you have severe pipe strain. Fix piping supports and hangers before proceeding.

Check for and correct "Soft Foot" conditions carefully. Soft foot happens when motor feet do not sit perfectly flat. Use precision feeler gauges under each motor foot while unbolted. Alternatively, use laser tools to detect microscopic movement when loosening hold-down bolts. Stainless steel shims must fill these gaps completely.

Taking Accurate Measurements

Technicians begin by mounting fixtures securely. Brackets attach firmly to the pump and motor shafts. Loose fixtures create erratic, completely useless data. You must tighten all chains or clamps fully.

You then rotate both shafts together smoothly. This synchronized action captures the true Total Indicator Reading (TIR). Rotating them simultaneously prevents coupling runout from distorting the actual measurement. Stop at 90-degree intervals to record data accurately.

Correcting the Misalignment

Offset correction requires shimming the motor vertically. You calculate the required shim thickness precisely. You insert precut, clean stainless steel shims under the specific motor feet. Avoid stacking more than four shims under any single foot.

Angular correction requires controlled lateral adjustments. You adjust the motor position horizontally across the baseplate. Jacking bolts provide controlled, precise lateral movements. Never strike the motor casing directly to shift it.

OEM Tolerances and Compliance-Aware Standards

Many technicians assume pump physical size dictates alignment tolerances. This is entirely incorrect. Operational RPM and flexible coupling type actually govern acceptable deviation limits. High-speed equipment requires far tighter tolerances than low-speed machinery.

General ANSI and API standards define acceptable vibration boundaries clearly. The American Petroleum Institute (API) provides strict frameworks for critical machinery. Acceptable offset tolerances shrink rapidly as operational speeds increase. A pump spinning at 3600 RPM allows roughly half the deviation of one running at 1800 RPM. You must reference OEM manuals for specific requirements.

Typical Acceptable Alignment Tolerances

Operating Speed (RPM)

Acceptable Offset (mils)

Acceptable Angularity (mils/inch)

1200 RPM

+/- 3.0

+/- 1.0

1800 RPM

+/- 2.0

+/- 0.5

3600 RPM

+/- 1.0

+/- 0.3

Proper documentation proves your compliance reliably. You must generate "As-Found" and "As-Left" alignment reports. The As-Found report shows the initial degraded state. The As-Left report verifies final corrections meet strict OEM standards. These crucial records secure warranty compliance. They also establish baseline data for modern predictive maintenance programs.

Implementation Risks: What Voids Alignment in the Real World?

Perfect cold alignments often fail dramatically during actual operation. Thermal growth represents a massive implementation risk. Operating temperatures alter shaft centerlines significantly. High-pressure systems generate considerable internal heat. As metal heats, it expands outward and upward. A motor and a pump often expand at entirely different rates. You must calculate and compensate for this thermal growth. Cold alignment targets must offset expected hot running conditions intentionally.

Jacking bolt omissions cause severe secondary equipment damage. Some technicians attempt lateral moves without these built-in alignment bolts. They use sledgehammers to strike the motor casing forcefully. This "hammering" severely damages internal motor bearings. It creates immediate brinelling on the delicate bearing races. Always use jacking bolts for smooth, controlled lateral shifts.

Flexible couplings do not cure foundational misalignment. This dangerous myth persists widely across the industry. Flexible couplings absorb slight rotational movement. However, they still transmit destructive lateral forces straight to the bearings. Misaligned flexible couplings wear out rapidly. The rubber inserts or metal discs degrade quickly. Never rely on a flexible coupling to fix a poor alignment job.

Conclusion

Proper vertical pump alignment remains a high-value investment in asset reliability. It is not merely a box to check during routine maintenance. Precision directly extends equipment lifespans. It reduces dangerous vibration levels continuously.

You must decide how to handle this task moving forward. You can train an internal team on modern laser tools. Alternatively, you might outsource precision alignment to specialized external technicians. Frequent alignments easily justify the capital cost of laser systems. Infrequent needs often favor strategic outsourcing.

Take action by auditing your current alignment procedures immediately. Review historical MTBF data on your existing pump installations. If you spot frequent bearing failures, you have a systemic problem. Consult OEM-certified partners promptly to discuss complex upgrades and rigorous standard operating procedures.

FAQ

Q: Do vertically mounted C-face motors need to be aligned?

A: Yes. Machined fits possess inherent manufacturing tolerances. These small physical deviations stack up during final assembly. This tolerance stacking causes unacceptable shaft runout. Precision alignment remains absolutely necessary to prevent premature bearing failure.

Q: How often should vertical pump alignment be checked?

A: You should check alignment immediately post-installation. Verify it again after any significant pipe modifications. Post-rebuild checks are also strictly mandatory. Always check alignment if continuous vibration monitoring indicates an operational anomaly.

Q: Can pipe strain mimic misalignment?

A: Yes. Disconnecting the system piping often reveals the truth. External stress easily pulls the pump casing completely out of alignment. Heavy pipes warp the equipment frame if improperly supported.
